DVP SC 5
The DVP SC 5 is a dry running rotary vane vacuum pump with a flow of 5 m3/h and a Max. vacuum of 120 mbar Abs.
Available with a 1ph or 3ph 0.12 kw motor @ 50Hz. It is rated for continuous duty.
As it utilises self-lubricating carbon vanes, it requires minimal servicing and no oil.
| Model | M3/Hr 50 / 60Hz | Max Vacuum mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
|
| 3PH | 1PH | |||
| SC 5 | 5 / 6 | 120 / 120 | 0.12/0.12 | 0.12/0.12 |

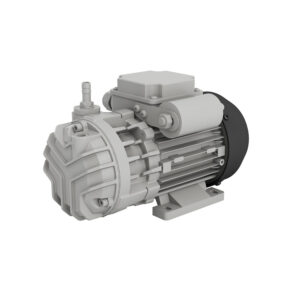

DVP SC 5 Vacuum Pump
The DVP SC 5 pumps are equipped with:
• Non-return valve at the inlet
• Silencer at the outlet
• Rotor and pump body NPO treated to withstand oxidation
Main application fields:
A wide variety of industries including : Medical, counting machines; silk screen printing machines, automatic feeder machines for book-binding; wood presses; vacuum lifting machines; pollutant sampling and analysis.
Main Accessories
• An external pre-filter canister is recommend to protect the pump.
Maintenance and servicing
At Vacuum Pumps UK, we are experts in servicing and maintaining all DVP Pumps. Visit our pump service page for further information.
With our sister company VacAir Superstore, we are a specialists in vanes, pump filters and oil separators and spare parts and vacuum pump oil all at the lowest possible prices.
Contact us if you need a parts diagram for your DVP SC 5
Refurbished DVP SC 5
Check our refurbished pump page or call us to check stock as it changes daily.
New Pump
We are the Master UK Agent for DVP Technology. All New DVP pumps in the UK are available DIRECTLY from us.
