DVP LC205/LC305 Vacuum Pumps

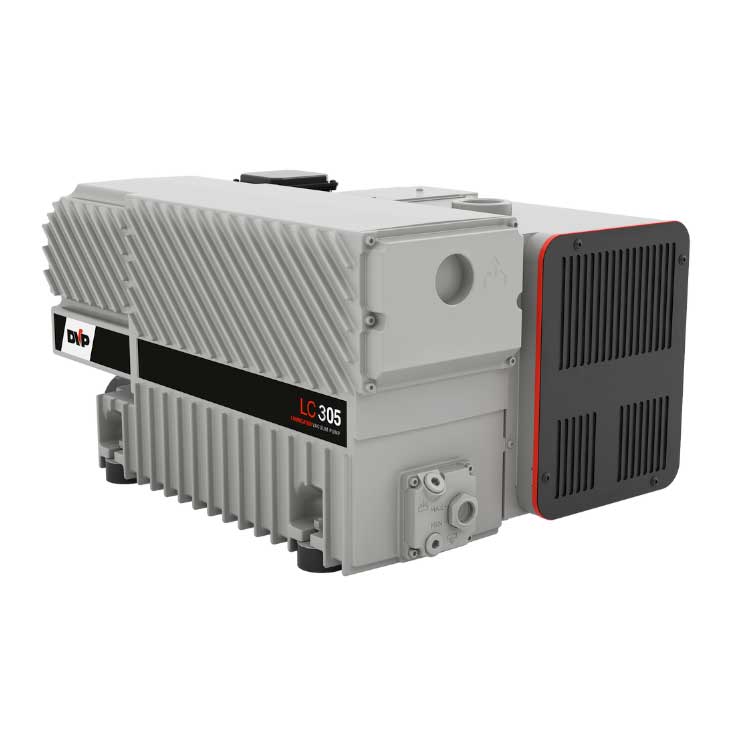

DVP LC305 Vacuum Pump
Oil Lubricated
Nominal capacity:
305 – 365 m3/h

Low noise level, ease of oil check and refill and simplified maintenance operation, are the main features of DVP LC 305 lubricated rotary vane vacuum pump.

The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapours at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stops under vacuum.

The motor-pump connection is via a flexible drive coupling. The DVP LC305 Vacuum Pumps are suitable for continuous operation within a pressure range from 400 to 0,5 mbar (Abs.).

Nominal capacity: 305 – 365 m3/h

Nominal capacity m3/h 50Hz/60Hz
 Max water vapour pumping rate kg/h Total final pressure mBar (ass) Motor power Kw50Hz/60Hz
LC305 305/365 5 0.5  7.5/8.6



SKU: DVP -Lc305-vacuum-pump
Categories: ,

The DVP LC305 Vacuum Pump is equipped with:

• Oil check valve
• Exhaust mist eliminator
• Automatic floating oil recovery valve
• Continuously working gas ballast
• Shock mounts
• Oil filter with by-pass
• Flexible transmission coupling

Main application fields:
Filling and sealing machines, food packing and food processing, production of PET containers, non-food packaging.


Accessories

See our accessories page for Optional accessories for the DVP LC305 Vacuum Pump.

Maintenance and servicing
Full service support is given by our sister company Vacair Superstore.
