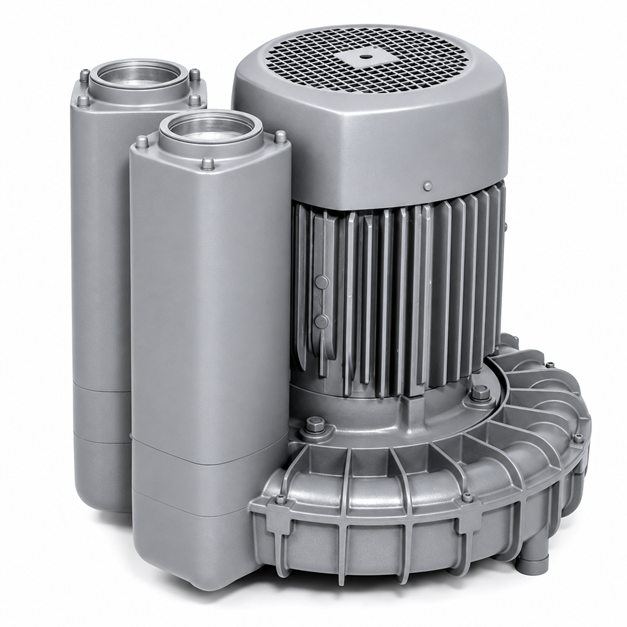

Becker SV5.130/1 0.75kW Side Channel Blower
The Becker SV5.130/1 combines 130 m³/h nominal airflow with balanced vacuum and pressure performance from a compact 0.75kW motor.
At 50 Hz, maximum relative vacuum is -125 mbar and maximum positive pressure is +130 mbar. This allows the SV5.130/1 to be considered for either suction or positive-pressure duties across a wide range of industrial machinery.
The blower generates airflow using non-contact side channel compression, providing an oil-free process-air path without rubbing compression vanes.
Becker blower supply and technical support from Vacuum Pumps UK.
Looking for an SV5.130/1?
Send us the Becker blower details or the required airflow and operating differential.
We can help identify the correct blower for your application.
Blower Type
Single Stage
side channel blower
Nominal Capacity
130 m³/h
at 50 Hz
Maximum Vacuum
-125 mbar
relative at 50 Hz
Maximum Pressure
+130 mbar
relative at 50 Hz
Motor Power
0.75kW
50 Hz motor
Balanced Vacuum and Pressure Performance
The SV5.130/1 provides 130 m³/h nominal airflow and has closely matched maximum vacuum and pressure differentials. This makes it a versatile choice where the same basic blower design may be required for either suction or positive-pressure operation.
Maximum relative vacuum is -125 mbar, while maximum positive pressure is +130 mbar. A 0.75kW motor provides the power required for this 50 Hz operating specification.
Rather than trapping and mechanically displacing individual volumes of air, a side channel blower continuously accelerates the air around an annular channel. Energy transferred by the rotating impeller progressively develops the required differential.
The process is non-contact and requires no lubricating oil within the air chamber. This makes the SV5.130/1 appropriate for applications requiring clean, continuous process airflow.
For replacement installations, the blower specification should be considered together with the connected system. Filter condition, pipe diameter, pipe length and restrictions can all affect the actual operating point.
SV5.130/1 Technical Data
| Model | Stage | Nominal Capacity | Maximum Vacuum | Maximum Pressure | Motor Power |
| SV5.130/1 | Single | 130 m³/h | -125 mbar | +130 mbar | 0.75kW |
Why Use an SV5.130/1?
130 m³/h Capacity
Provides useful airflow for individual machines and medium-volume process-air duties.
Vacuum Operation
Maximum relative vacuum of -125 mbar for suction, handling and process applications.
Pressure Operation
Maximum positive pressure of +130 mbar provides similarly useful capability on the discharge side.
0.75kW Motor
Compact motor power combined with substantially greater airflow than smaller blower sizes.
Applications for the Becker SV5.130/1
The balanced suction and blowing characteristics of the SV5.130/1 allow it to serve a broad range of machine-air requirements.
› Packaging machinery
› Printing and paper handling
› Vacuum component handling
› Sheet transport and separation
› Light pneumatic conveying
› Drying and cooling
› Aeration duties
› General industrial machinery
SV5.130/1 Installation Accessories
Suitable accessories can help protect the blower, control operating differential and simplify connection to existing machinery or pipework.
Inlet Filters
Filtration helps prevent dust and airborne contamination entering the blower.
Vacuum Relief
Relief valves can limit suction differential and protect against excessive restriction.
Pressure Relief
Pressure-side protection can limit excessive positive differential.
Connections
Silencers, non-return valves, flexible connectors and other components can be selected for the installation.
Becker SV5.130/1 Service, Repair and Spare Parts
Changes in blower noise, temperature or airflow can result from bearing condition, motor problems, contamination or increased restriction within the connected system.
Vacuum Pumps UK can assist with inspection, servicing, fault diagnosis and workshop repair of Becker side channel blowers.
Service
Technical support for installed Becker SV side channel blowers and routine maintenance requirements.
Repair
Workshop inspection and repair assessment for motor, bearing and blower problems.
Spare Parts
Becker filters and replacement components are available through VacAir Superstore.
Becker SV5.130/1 Frequently Asked Questions
How much airflow does the SV5.130/1 provide?
The nominal capacity is 130 m³/h at 50 Hz.
What is the maximum vacuum?
The SV5.130/1 provides maximum relative vacuum of -125 mbar.
What positive pressure is available?
Maximum relative positive pressure is +130 mbar.
What is the motor power?
The 50 Hz motor rating for this configuration is 0.75kW.
Can the SV5.130/1 be used as both a vacuum blower and pressure blower?
The side channel design can be applied to vacuum or positive-pressure duties, subject to correct system design and operating conditions.
Can you help replace an existing SV5.130/1?
Yes. Send Vacuum Pumps UK the blower and motor details and we can assist with identification and replacement requirements.
