Schmalz Vacuum Pumps
Schmalz vacuum pumps, replacement pumps, servicing, carbon vanes, filters and technical support for vacuum lifting, handling, clamping and automation systems.
A significant proportion of Schmalz-branded rotary vane vacuum pumps are manufactured by Becker as OEM equipment. Our engineers can identify the original Becker model from the Schmalz pump, recommend the correct replacement, supply servicing and spare parts, or advise on suitable DVP alternatives where the application allows..
Replacement Pumps
Send the Schmalz model and nameplate details and we will assess the pump, availability and suitable replacement options.
Model Identification
We can help identify Schmalz EVE-TR, EVE-TR-X and EVE-OG pumps from the complete nameplate and installation photographs.
Service & Spare Parts
Our sister company VacAir Superstore supports Schmalz pumps with servicing, carbon vanes, filters and replacement components.
Pump Comparison
Where appropriate, we can compare a Schmalz EVE pump with a corresponding DVP SC or LC series pump.
Schmalz Vacuum Lifting and Handling Equipment
Schmalz manufactures vacuum components, gripping systems, lifting equipment and vacuum clamping solutions for industrial handling and automation. Its equipment is used for lifting and moving products such as sheet materials, glass, timber, packaging, metal panels, plastics and manufactured components.
The vacuum pump is a critical part of many Schmalz systems. A reduction in pumping speed, worn carbon vanes, blocked filters, air leaks or an incorrectly selected replacement can reduce lifting performance and increase evacuation time.
About the pump manufacturer: Many Schmalz dry-running rotary vane pumps are manufactured by Becker and supplied under Schmalz EVE model numbers. This is useful when identifying service parts, but the pump should primarily be identified from its Schmalz nameplate because fittings, motors, mounting arrangements and specifications can differ.

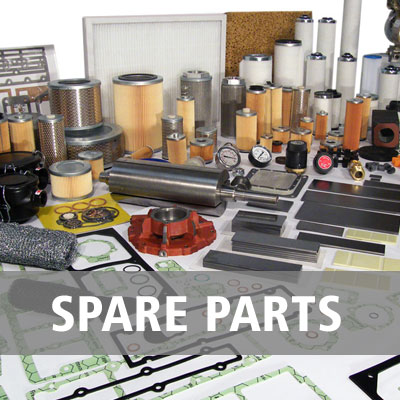

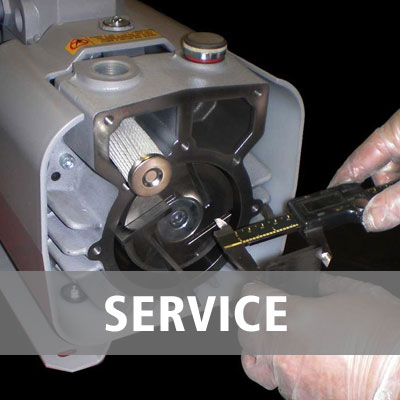

Schmalz Pump Servicing, Vanes and Spare Parts
Our sister company, VacAir Superstore, provides workshop servicing, replacement carbon vanes, filters and spare parts for Schmalz-branded vacuum pumps. Support is available for commonly encountered EVE-TR, EVE-TR-X and related pump models.
Comparing a Schmalz EVE Vacuum Pump?
Many Schmalz EVE-TR and EVE-TR-X vacuum pumps are Becker OEM pumps supplied under the Schmalz brand. This knowledge can simplify pump identification, replacement and spare parts selection. Where appropriate, these models can often be compared with the DVP SC dry-running rotary vane range. Likewise, Schmalz EVE-OG oil-lubricated rotary vane pumps can frequently be compared with suitable DVP LC or MD series pumps, with the final selection confirmed against the application, performance requirements and installation details.
The model number frequently indicates the approximate nominal pumping speed, but the final selection must also consider vacuum level, motor, voltage, duty, port position, dimensions and installation arrangement.
| Schmalz model or series | Pump technology | Typical DVP comparison |
|---|---|---|
| EVE-TR 4 | Becker VT 4.4 Dry-running rotary vane | DVP SC5 |
| EVE-TR 8 | Becker VT 4.8 Dry-running rotary vane | DVP SC8 |
| EVE-TR 10 | Becker VT 4.10 Dry-running rotary vane | DVP SB10 |
| EVE-TR 25 | Becker VT 4.25 Dry-running rotary vane | DVP SC25 |
| EVE-TR 40 | Becker VT 4.40 Dry-running rotary vane | DVP SC40 |
| EVE-TR 60 | Becker KVT 3.60 Dry-running rotary vane | DVP SC60 |
| EVE-TR 80 | Becker KVT 3.80 Dry-running rotary vane | DVP SC80 |
| EVE-TR 100 | Becker KVT 3.100 Dry-running rotary vane | DVP SC100 |
| EVE-TR 140 | Becker KVT 3.140 Dry-running rotary vane | DVP SC140 |
| EVE-TR-X 40 | Becker VX 4.40 Dry-running rotary vane | DVP SC40 |
| EVE-TR-X 100 | Becker KVX 3.100 Dry-running rotary vane | DVP SC100 |
| EVE-TR-X 140 | Becker KVX 3.140 Dry-running rotary vane | DVP SC140 |
| EVE-TR 250 / EVE-TR 360 | Becker VTLF 2.250 / 2.360 Dry-running rotary vane | DVP VB315 |
| EVE-OG Series | Oil-lubricated rotary vane | DVP LC or MD series |
Important: These are comparison starting points, not guaranteed drop-in replacements. The exact Schmalz suffix, electrical details, mounting, port position, vacuum level and continuous-duty requirements must be confirmed before ordering.
Not sure which Schmalz pump you have?
Send a clear photograph of the complete Schmalz pump nameplate, the motor plate and the full pump installation. Include the model, part number, voltage, frequency and any suffix letters. Also tell us whether you need a replacement pump, repair, carbon vanes, filters or help diagnosing reduced vacuum performance.
Applications for Schmalz Vacuum Pumps
Schmalz pumps are commonly installed as part of complete vacuum lifting, handling and production systems rather than as standalone process pumps.
Vacuum Lifting
Lifting panels, sheets, sacks, boxes and manufactured products.

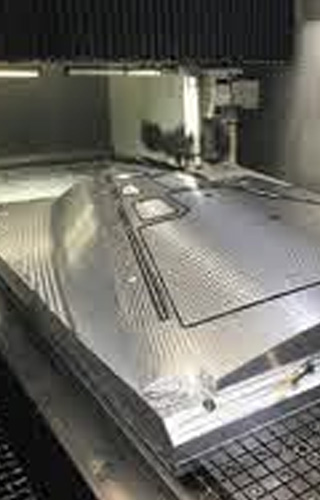

Vacuum Clamping
Holding components securely during machining and assembly.
Glass Handling
Lifting and positioning glass sheets and finished products.
CNC and Woodworking
Vacuum hold-down, material handling and production automation.
Packaging and Logistics
Automated gripping, loading, palletising and product movement.
Industrial Automation
Robotic gripping, pick-and-place and automated production systems.
Schmalz Vacuum Pump Frequently Asked Questions
Who manufactures Schmalz vacuum pumps?
Schmalz supplies several pump technologies. Many EVE dry-running rotary vane pumps are Becker-manufactured units supplied under Schmalz model numbers. Identification should still be based on the full Schmalz nameplate.
What is the DVP equivalent to a Schmalz EVE-TR pump?
The DVP SC range is the usual technology comparison for Schmalz EVE-TR and EVE-TR-X dry-running rotary vane pumps. The exact DVP model depends on pumping speed, vacuum level, motor, duty and installation details.
Can you repair a Schmalz EVE vacuum pump?
Yes. VacAir Superstore can inspect and repair many Schmalz-branded rotary vane pumps, subject to model, condition and parts availability.

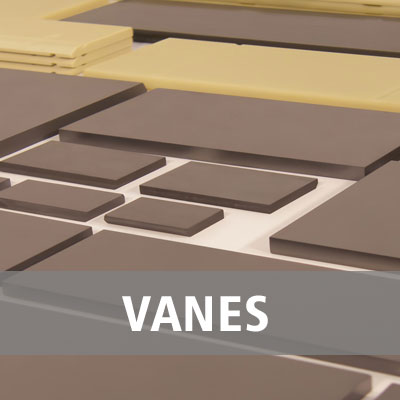

Do you supply carbon vanes for Schmalz pumps?
Replacement carbon vanes are available for many EVE-TR and EVE-TR-X models. The complete model and, ideally, the existing vane or pump part number should be confirmed before ordering.
Why has my Schmalz lifting system lost vacuum?
Possible causes include worn vanes, blocked filters, air leaks, damaged seals, restricted pipework, worn pump components or a fault elsewhere in the lifting system. The pump and complete system should be assessed safely before further use.
Can a Schmalz pump be replaced with a different brand?
Often yes, provided the replacement meets the required flow, vacuum, continuous duty, electrical, dimensional and safety requirements. A replacement should never be selected from nominal capacity alone.
Need Help With a Schmalz Vacuum Pump?
Our experienced team can help with Schmalz replacement pumps, Becker and DVP comparisons, workshop servicing, filters, separators and spare parts. Contact us for technical advice and a competitive quotation.
