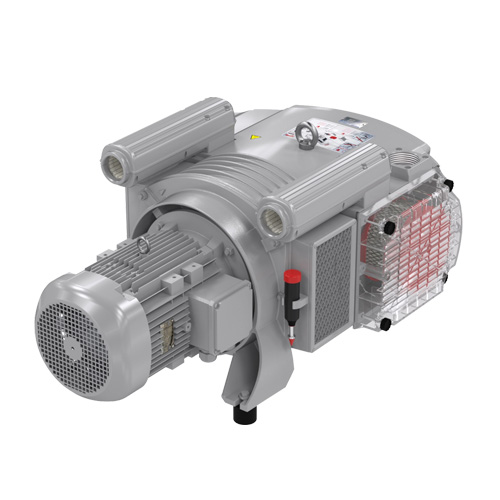

Becker VTLF 2.360 Vacuum Pump
The VTLF 2.360 provides high-volume, oil-free vacuum for larger production equipment where continuous airflow and robust dry-running construction are required.
Vacuum Pumps UK can supply new Becker VTLF 2.360 vacuum pumps and provide technical advice for replacement installations.
Where an exact Becker replacement is not essential, we can assess the application and offer a suitable alternative pump or engineered vacuum system.
New pumps, replacement advice and specialist dry-vane technical support from Vacuum Pumps UK.
Need a new or replacement pump?
Send us the pump nameplate, machine details and application information.
We can quote the Becker VTLF 2.360 or assess a suitable replacement option.
Pump Type
Dry Running
rotary vane pump
Capacity
351 / 402 m³/h
50Hz / 60Hz
Maximum Vacuum
250 mbar
absolute
Motor Power
11.0 / 13.2
kW 50Hz / 60Hz
Becker VTLF 2.360 Overview
The VTLF 2.360 provides high-volume, oil-free vacuum for larger production equipment where continuous airflow and robust dry-running construction are required.
The larger frame size and airflow suit machinery with sustained vacuum demand, including larger woodworking and production installations.
Unlike oil lubricated rotary vane pumps, the VTLF uses self-lubricating carbon vanes and does not require oil in the pumping chamber. This makes it suitable for applications where clean, dry vacuum is important.
Carbon vanes remain a normal wear component and should be inspected at suitable service intervals. Running a large dry vane pump with excessively worn vanes can lead to reduced output and costly internal damage.
Vacuum Pumps UK can assist with new pump supply, while our sister company VacAir Superstore provides specialist Becker service, vanes, filters, service kits and workshop overhaul support.
Becker VTLF 2.360 Technical Specifications
The figures below provide a general reference for the standard Becker VTLF 2.360. Motor voltage, connections and individual pump configuration should be confirmed before ordering.
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Maximum Vacuum mbar absolute 50Hz / 60Hz |
Motor Power kW 50Hz / 60Hz |
| Becker VTLF 2.360 | 351 / 402 | 250 / 250 | 11.0 / 13.2 |
Becker VTLF 2.360 Pump Features
Dry Running Rotary Vane
Self-lubricating carbon vanes provide oil-free vacuum generation without process oil inside the pumping chamber.
Continuous Industrial Duty
Becker VTLF 2.360 is designed for continuous operation when correctly selected, installed and maintained.
High Airflow
The pump is intended for industrial duties where sustained airflow is more important than very deep vacuum.
Oil-Free Pumping Chamber
Dry vane technology avoids oil contamination from the pumping chamber and simplifies many production applications.
Serviceable Construction
Carbon vanes, filters, bearings and other wear components can be inspected and replaced as part of planned maintenance.
Industrial Applications
Common uses include woodworking, packaging, printing, plastics, material handling and general production machinery.
Typical Becker VTLF 2.360 Applications
Applications vary by machine design and operating conditions, but the Becker VTLF 2.360 is commonly found on industrial duties requiring high airflow and oil-free vacuum.
› Large woodworking machines
› CNC hold-down systems
› Industrial packaging lines
› Print and converting machinery
› Vacuum conveying
› Plastics and forming equipment
› Material handling systems
› Central vacuum duties
› Production extraction duties
› General manufacturing
New Becker VTLF 2.360 Vacuum Pump Supply
Vacuum Pumps UK can supply new Becker VTLF 2.360 vacuum pumps for existing machinery, planned replacement work and new industrial installations.
Where the original Becker specification needs to be retained, send us the complete pump nameplate and we can confirm the correct motor, voltage and connection details.
Contact us for current price, availability and application advice.
Replacement Pump Advice
Pump, system and application assessment
Alternative Replacement Options
Considering an Alternative to the Becker VTLF 2.360
Where an exact Becker replacement is not essential, Vacuum Pumps UK can assess the application and offer a suitable alternative pump or engineered vacuum system.
For this capacity class there is not always a sensible one-for-one replacement. The best option depends heavily on whether the pump is serving a CNC bed, central line, conveying duty or another process with significant leakage.
We look at required airflow, operating vacuum, duty cycle, leakage, pipework, motor supply, physical space and how the vacuum is used by the machine before recommending a change.
For some installations the best answer is a single replacement pump. For others, a duty-and-standby arrangement, multiple smaller pumps or a central vacuum system can provide better production resilience and maintenance access.
Send us the existing pump nameplate, machine details and photographs of the installation and we can assess the practical options.
Becker VTLF 2.360 Carbon Vanes, Service Kits and Repair
If the existing Becker VTLF 2.360 remains mechanically repairable, our sister company VacAir Superstore provides specialist support for Becker dry vane servicing, workshop overhaul and replacement components.
VacAir is a specialist supplier of Becker carbon vanes, filters, service kits, bearings and vacuum pump spare parts.
Carbon Vanes
Replacement carbon vane sets for Becker VTLF dry running vacuum pumps.
Service Kits
Maintenance kits and service components for planned Becker pump servicing.
Filters & Spares
Inlet filters, bearings, gaskets, couplings and other replacement components.
Service & Overhaul
Workshop inspection, dry vane servicing, repair and full pump overhaul.
Becker VTLF 2.360 Frequently Asked Questions
What type of vacuum pump is the Becker VTLF 2.360?
It is a dry running rotary vane vacuum pump using self-lubricating carbon vanes to generate oil-free vacuum.
What is the pumping capacity of the Becker VTLF 2.360?
The stated nominal capacity is 351 m³/h at 50Hz and 402 m³/h at 60Hz.
What vacuum level can the Becker VTLF 2.360 achieve?
The stated maximum vacuum is 250 mbar absolute.
Can Vacuum Pumps UK supply a new Becker VTLF 2.360?
Yes. We can quote a new Becker pump, subject to the required specification and availability.
Can you offer an alternative to the Becker VTLF 2.360?
Yes. We can assess the machine duty and consider an alternative pump or vacuum system. The correct option depends on airflow, vacuum level, duty cycle, electrical supply and installation constraints.
Can my existing Becker VTLF 2.360 be repaired?
Many VTLF pumps can be serviced or overhauled depending on vane wear and the condition of the cylinder, rotor, bearings and motor. VacAir can provide specialist inspection and repair support.
Need a Becker VTLF 2.360 or Replacement Vacuum Pump?
Contact Vacuum Pumps UK for prices, availability, technical advice and replacement pump recommendations.
Send us your pump nameplate and application details and we will advise on the most suitable option.
