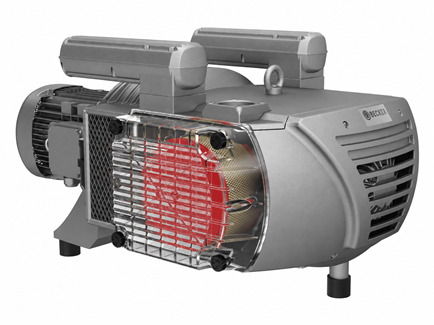

Becker VTLF 2.400 Vacuum Pump
The VTLF 2.400 combines a high nominal pumping speed with dry-running rotary vane technology for demanding industrial installations.
Vacuum Pumps UK can supply new Becker VTLF 2.400 vacuum pumps and provide technical advice for replacement installations.
Where an exact Becker replacement is not essential, we can assess the application and offer a suitable alternative pump or engineered vacuum system.
New pumps, replacement advice and specialist dry-vane technical support from Vacuum Pumps UK.
Need a new or replacement pump?
Send us the pump nameplate, machine details and application information.
We can quote the Becker VTLF 2.400 or assess a suitable replacement option.
Pump Type
Dry Running
rotary vane pump
Capacity
390 / 460 m³/h
50Hz / 60Hz
Maximum Vacuum
200 mbar
absolute
Motor Power
7.5 / 8.6
kW 50Hz / 60Hz
Becker VTLF 2.400 Overview
The VTLF 2.400 combines a high nominal pumping speed with dry-running rotary vane technology for demanding industrial installations.
Its 390 m³/h 50Hz rating places it in a high-flow class used where one pump must support substantial leakage or multiple suction points.
Unlike oil lubricated rotary vane pumps, the VTLF uses self-lubricating carbon vanes and does not require oil in the pumping chamber. This makes it suitable for applications where clean, dry vacuum is important.
Carbon vanes remain a normal wear component and should be inspected at suitable service intervals. Running a large dry vane pump with excessively worn vanes can lead to reduced output and costly internal damage.
Vacuum Pumps UK can assist with new pump supply, while our sister company VacAir Superstore provides specialist Becker service, vanes, filters, service kits and workshop overhaul support.
Becker VTLF 2.400 Technical Specifications
The figures below provide a general reference for the standard Becker VTLF 2.400. Motor voltage, connections and individual pump configuration should be confirmed before ordering.
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Maximum Vacuum mbar absolute 50Hz / 60Hz |
Motor Power kW 50Hz / 60Hz |
| Becker VTLF 2.400 | 390 / 460 | 200 / 200 | 7.5 / 8.6 |
Becker VTLF 2.400 Pump Features
Dry Running Rotary Vane
Self-lubricating carbon vanes provide oil-free vacuum generation without process oil inside the pumping chamber.
Continuous Industrial Duty
Becker VTLF 2.400 is designed for continuous operation when correctly selected, installed and maintained.
High Airflow
The pump is intended for industrial duties where sustained airflow is more important than very deep vacuum.
Oil-Free Pumping Chamber
Dry vane technology avoids oil contamination from the pumping chamber and simplifies many production applications.
Serviceable Construction
Carbon vanes, filters, bearings and other wear components can be inspected and replaced as part of planned maintenance.
Industrial Applications
Common uses include woodworking, packaging, printing, plastics, material handling and general production machinery.
Typical Becker VTLF 2.400 Applications
Applications vary by machine design and operating conditions, but the Becker VTLF 2.400 is commonly found on industrial duties requiring high airflow and oil-free vacuum.
› Large CNC vacuum beds
› Woodworking production lines
› Printing and paper machinery
› Packaging equipment
› Industrial vacuum fixing
› Plastics processing
› Conveying and handling
› Automation systems
› Central vacuum installations
› General high-flow vacuum
New Becker VTLF 2.400 Vacuum Pump Supply
Vacuum Pumps UK can supply new Becker VTLF 2.400 vacuum pumps for existing machinery, planned replacement work and new industrial installations.
Where the original Becker specification needs to be retained, send us the complete pump nameplate and we can confirm the correct motor, voltage and connection details.
Contact us for current price, availability and application advice.
Replacement Pump Advice
Pump, system and application assessment
Alternative Replacement Options
Considering an Alternative to the Becker VTLF 2.400
Where an exact Becker replacement is not essential, Vacuum Pumps UK can assess the application and offer a suitable alternative pump or engineered vacuum system.
A replacement for the VTLF 2.400 should be selected around the actual operating point rather than simply matching the nameplate flow. Depending on the machine, a different pump technology or a multi-pump arrangement may offer advantages.
We look at required airflow, operating vacuum, duty cycle, leakage, pipework, motor supply, physical space and how the vacuum is used by the machine before recommending a change.
For some installations the best answer is a single replacement pump. For others, a duty-and-standby arrangement, multiple smaller pumps or a central vacuum system can provide better production resilience and maintenance access.
Send us the existing pump nameplate, machine details and photographs of the installation and we can assess the practical options.
Choosing a Replacement for the Becker VTLF 2.400
Large dry vane pumps are often part of a wider machine or vacuum system, so a replacement should be selected around the application rather than the model number alone.
Airflow Requirement
Measure or assess the actual flow demand, including leakage and open vacuum zones.
Operating Vacuum
The normal working vacuum can be more important than the pump’s ultimate specification.
Electrical Supply
Motor power, voltage, starter and control arrangements should be checked before selecting a different pump.
System Options
A single pump, multiple pumps or a central vacuum system can be considered depending on production requirements.
Becker VTLF 2.400 Carbon Vanes, Service Kits and Repair
If the existing Becker VTLF 2.400 remains mechanically repairable, our sister company VacAir Superstore provides specialist support for Becker dry vane servicing, workshop overhaul and replacement components.
VacAir is a specialist supplier of Becker carbon vanes, filters, service kits, bearings and vacuum pump spare parts.
Carbon Vanes
Replacement carbon vane sets for Becker VTLF dry running vacuum pumps.
Service Kits
Maintenance kits and service components for planned Becker pump servicing.
Filters & Spares
Inlet filters, bearings, gaskets, couplings and other replacement components.
Service & Overhaul
Workshop inspection, dry vane servicing, repair and full pump overhaul.
Becker VTLF 2.400 Frequently Asked Questions
What type of vacuum pump is the Becker VTLF 2.400?
It is a dry running rotary vane vacuum pump using self-lubricating carbon vanes to generate oil-free vacuum.
What is the pumping capacity of the Becker VTLF 2.400?
The stated nominal capacity is 390 m³/h at 50Hz and 460 m³/h at 60Hz.
What vacuum level can the Becker VTLF 2.400 achieve?
The stated maximum vacuum is 200 mbar absolute.
Can Vacuum Pumps UK supply a new Becker VTLF 2.400?
Yes. We can quote a new Becker pump, subject to the required specification and availability.
Can you offer an alternative to the Becker VTLF 2.400?
Yes. We can assess the machine duty and consider an alternative pump or vacuum system. The correct option depends on airflow, vacuum level, duty cycle, electrical supply and installation constraints.
Can my existing Becker VTLF 2.400 be repaired?
Many VTLF pumps can be serviced or overhauled depending on vane wear and the condition of the cylinder, rotor, bearings and motor. VacAir can provide specialist inspection and repair support.
Need a Becker VTLF 2.400 or Replacement Vacuum Pump?
Contact Vacuum Pumps UK for prices, availability, technical advice and replacement pump recommendations.
Send us your pump nameplate and application details and we will advise on the most suitable option.
