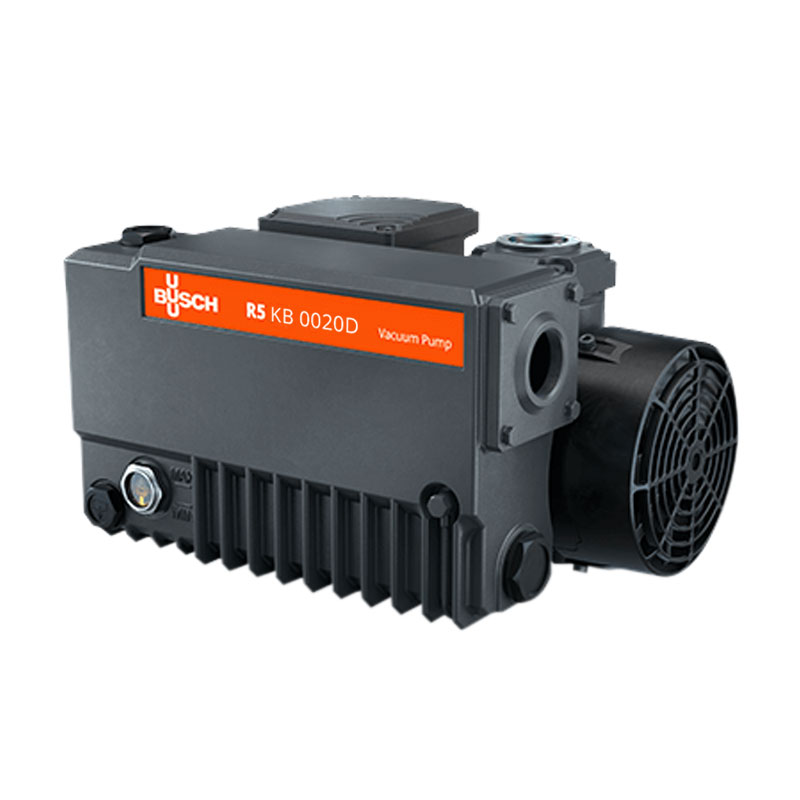

Busch R5 KB 0020 D Vacuum Pump
The Busch R5 KB 0020 D is a compact oil lubricated rotary vane vacuum pump designed for dependable continuous operation in confined machinery spaces, particularly on vacuum packaging machines, food-processing equipment and other OEM machinery.
Vacuum Pumps UK can supply new Busch R5 KB 0020 D vacuum pumps and provide technical advice for replacement pump installations.
Where an exact Busch replacement is not essential, we can assess whether the DVP LC20 offers a suitable and cost-effective alternative with closely matched pumping capacity, vacuum level and motor rating.
New Busch pumps, DVP alternatives and technical application support from Vacuum Pumps UK.
Need a new or replacement pump?
Send us the model number, motor details and application information.
We can quote the Busch R5 KB 0020 D or advise whether the DVP LC20 is suitable.
Pump Type
Oil Lubricated
rotary vane pump
Capacity
20 / 24 m³/h
50Hz / 60Hz
Ultimate Vacuum
2 mbar
absolute
Motor Power
0.75 / 0.75
kW 50Hz / 60Hz
Busch R5 KB 0020 D Overview
The Busch R5 KB 0020 D is part of the established Busch R5 range of oil lubricated rotary vane vacuum pumps.
It is designed for confined machinery installations requiring reliable continuous vacuum performance, a nominal pumping capacity of 20 m³/h at 50Hz and an ultimate pressure of 2 mbar absolute.
The KB 0020 D is commonly installed in chamber packaging machines, clipping and sealing equipment, tray sealing and packaging machinery, vacuum handling systems and other compact production equipment requiring approximately 20 m³/h at 50Hz.
Oil within the pump lubricates the working components, assists sealing and helps control operating temperature. Integrated exhaust separation helps recover oil and reduce oil mist from the pump exhaust.
Vacuum Pumps UK can assist with the supply of a new Busch R5 KB 0020 D where the original pump specification needs to be retained.
Busch R5 KB 0020 D Technical Specifications
The figures below provide a general technical reference for the standard Busch R5 KB 0020 D. Motor voltage, connection details and individual pump configuration should be confirmed before ordering.
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar absolute 50Hz / 60Hz |
Motor Power kW 50Hz / 60Hz |
| Busch R5 KB 0020 D | 20 / 24 | 2.0 / 2.0 | 0.75 / 0.75 |
Busch R5 KB 0020 D Pump Features
Oil Lubricated Rotary Vane
Oil provides lubrication and sealing within the pumping chamber while supporting stable vacuum performance.
Direct-Drive Construction
The direct-drive arrangement supports a reduced overall height and weight for installation in confined machinery spaces.
Compact Installation
The pump is designed for compact OEM machinery and vacuum packaging equipment where available installation space is restricted.
Oil Mist Separation
Integrated exhaust separation helps retain oil within the pump and minimise oil mist emissions.
Non-Return Protection
An integrated non-return arrangement helps prevent unwanted reverse flow when the pump stops.
Continuous Operation
The KB 0020 D is rated for continuous duty when correctly selected, installed and maintained.
Typical Busch R5 KB 0020 D Applications
The Busch R5 KB 0020 D is commonly used where compact and dependable oil lubricated vacuum performance is required.
› Table-top chamber packaging machines
› Filling and sealing machinery
› Clipping and sealing machinery
› Vacuum handling equipment
› Tray loading systems
› Printing and paper machinery
› Laboratory and dental equipment
› Vacuum casting equipment
› Compact production machinery
› General OEM vacuum applications
New Busch R5 KB 0020 D Vacuum Pump Supply
Vacuum Pumps UK can supply new Busch R5 KB 0020 D vacuum pumps for existing machinery, planned replacement work and new compact equipment installations.
Where the existing machine or customer specification requires the original Busch model, we can quote the correct pump and confirm the relevant motor, voltage and connection details.
Contact us with the existing pump nameplate or full model information for price and availability.
DVP LC20
Comparable 20 m³/h oil lubricated vacuum pump
Comparable DVP Alternative
Consider the DVP LC20
Where an exact Busch replacement is not essential, the DVP LC20 may provide a suitable and cost-effective alternative to the Busch R5 KB 0020 D.
With a nominal capacity of 20 m³/h at 50Hz and 24 m³/h at 60Hz, the LC20 matches the stated pumping capacity of the Busch R5 KB 0020 D.
Both pumps have a stated final pressure of 2 mbar absolute, making the LC20 a closely aligned option where the application does not specifically require the original Busch model.
The DVP LC20 combines compact dimensions with low noise levels, straightforward oil inspection and simple routine maintenance.
Its oil damping and recovery system incorporates a by-pass and automatic float-operated oil recovery valve to help minimise oil vapour emissions from the exhaust. A sealing device also helps prevent oil from being drawn back into the connected system if the pump stops under vacuum.
Although the principal performance figures are closely matched, mounting dimensions, inlet position, connection size, motor voltage and installation arrangements must still be checked before changing pump model.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Busch R5 KB 0020 D and DVP LC20 Comparison
The comparison below shows the principal technical figures for each model. Final suitability should be checked against the machine, application and installation requirements.
| Specification | Busch R5 KB 0020 D | DVP LC20 |
| Pump Technology | Oil lubricated rotary vane | Oil lubricated rotary vane |
| Nominal Capacity 50Hz | 20 m³/h | 20 m³/h |
| Nominal Capacity 60Hz | 24 m³/h | 24 m³/h |
| Maximum Vacuum | 2 mbar absolute | 2 mbar absolute |
| Motor Power 50Hz | 0.75 kW | 0.75 kW |
| Motor Power 60Hz | 0.75 kW | 0.9 kW |
Important: Mounting dimensions, inlet position, connection size, motor voltage, operating pressure and process conditions should always be checked.
Why Consider the DVP LC20?
Many customers searching for a Busch R5 KB 0020 D require a reliable compact 20 m³/h oil lubricated vacuum pump rather than a specific manufacturer.
Comparable Capacity
Both pumps provide a nominal pumping capacity of 20 m³/h at 50Hz and 24 m³/h at 60Hz.
Cost-Effective Option
The LC20 may provide a cost-effective purchase option where an exact Busch replacement is not essential.
Matched Vacuum Level
Both pumps have a stated final pressure of 2 mbar absolute.
Factory-Backed Support
Vacuum Pumps UK provides DVP application advice, genuine spares and official UK support.
Busch R5 KB 0020 D Parts, Oil Separators and Service
VacAir Superstore is the UK’s leading independent suppliers of replacement vacuum pump vanes, service kits, separators, filters, oils and spare parts since 1996.
VacAir’s experienced Busch pump service engineers can assist with reduced vacuum, exhaust smoke, oil mist, oil leaks, overheating, excessive noise and internal pump damage.
Spare Parts
Replacement components for servicing and repairing the Busch R5 KB 0020 D.
Oil Separators
Replacement exhaust separators to help control oil mist and maintain reliable operation.
Pump Oil
Suitable vacuum pump oils for Busch R5 maintenance and planned oil changes.
Service and Repair
Workshop inspection, servicing, repair and full Busch pump overhaul.
Busch R5 KB 0020 D Frequently Asked Questions
What type of vacuum pump is the Busch R5 KB 0020 D?
It is a compact oil lubricated rotary vane vacuum pump used on packaging machinery and other small industrial vacuum applications.
What is the capacity of the Busch R5 KB 0020 D?
The stated nominal pumping capacity is 20 m³/h at 50Hz and 24 m³/h at 60Hz.
What vacuum level can the Busch R5 KB 0020 D achieve?
The stated ultimate pressure is 2 mbar absolute.
Can Vacuum Pumps UK supply a new Busch R5 KB 0020 D?
Yes. Vacuum Pumps UK can supply new Busch R5 KB 0020 D vacuum pumps, subject to specification and availability.
What is the DVP alternative to the Busch R5 KB 0020 D?
The DVP LC20 is the nearest comparable DVP model, with the same stated nominal pumping capacity and final pressure.
Is the DVP LC20 a direct replacement?
Not automatically. The main performance figures are closely matched, but dimensions, connections, motor details and the installation arrangement must still be checked before changing pump model.
Can my existing Busch KB 0020 D be repaired?
Many pumps can be serviced or overhauled depending on their internal condition. VacAir can provide specialist Busch pump inspection, repair and refurbishment support.
Need a Busch R5 KB 0020 D or DVP LC20?
Contact Vacuum Pumps UK for prices, availability, technical advice and replacement pump recommendations.
Send us your existing pump model and application details and we will advise on the most suitable option.
