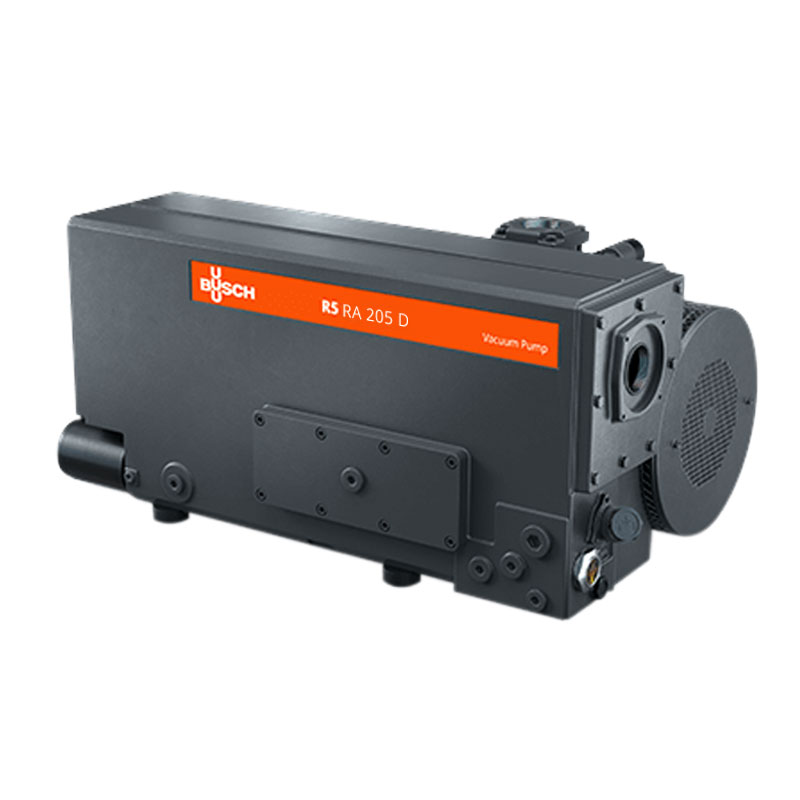

Busch R5 RA 0205D Vacuum Pump
The Busch R5 RA 0205D is a single-stage oil lubricated rotary vane vacuum pump designed for continuous industrial duty across packaging, food processing, production machinery and larger vacuum systems.
Vacuum Pumps UK can supply new Busch R5 RA 0205D vacuum pumps and provide technical advice for replacement pump installations.
Where an exact Busch replacement is not essential, the DVP LC205 provides a closely matched pumping capacity and the same stated motor rating, making it a cost-effective alternative for suitable applications.
New Busch pumps, DVP alternatives and technical application support from Vacuum Pumps UK.
Need a new or replacement pump?
Send us the model number, motor details and application information.
We can quote the Busch R5 RA 0205D or assess whether the DVP LC205 is suitable.
Pump Type
Oil Lubricated
single-stage rotary vane
Capacity
200 / 240 m³/h
50Hz / 60Hz
Ultimate Vacuum
0.1 mbar
absolute
Motor Power
5.5 / 6.6
kW 50Hz / 60Hz
Busch R5 RA 0205D Overview
The Busch R5 RA 0205D is part of the established Busch R5 range of oil lubricated rotary vane vacuum pumps.
It is a single-stage pump developed for continuous-duty industrial applications requiring strong pumping speed at low operating pressures and a nominal capacity of 200 m³/h at 50Hz.
The RA 0205D is commonly installed on larger packaging machines, tray sealing and thermoforming equipment, food processing systems, plastics machinery, vacuum conveying equipment and centralised vacuum installations.
Oil within the pump lubricates the working components, assists sealing and supports stable operating temperature. Integrated exhaust separation helps recover oil within the pump and reduce oil mist from the exhaust.
Vacuum Pumps UK can assist with the supply of a new Busch R5 RA 0205D where the original pump specification needs to be retained.
Busch R5 RA 0205D Technical Specifications
The figures below provide a general technical reference for the standard Busch R5 RA 0205D. Motor voltage, connection details and individual pump configuration should be confirmed before ordering.
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar absolute 50Hz / 60Hz |
Motor Power kW 50Hz / 60Hz |
| Busch R5 RA 0205D | 200 / 240 | 0.1 / 0.1 | 5.5 / 6.6 |
Busch R5 RA 0205D Pump Features
Single-Stage Rotary Vane
The single-stage oil lubricated rotary vane design provides strong pumping performance at low pressures.
Continuous Industrial Duty
The RA 0205D is designed for continuous operation when correctly installed, operated and maintained.
High-Capacity Performance
A nominal pumping speed of 200 m³/h at 50Hz supports larger machinery and industrial vacuum systems.
Oil Mist Separation
Integrated exhaust separator elements help retain oil within the pump and reduce oil mist from the exhaust.
Non-Return Protection
An integrated non-return arrangement helps prevent unwanted reverse flow when the pump stops under vacuum.
Low-Pressure Performance
The stated ultimate pressure of 0.1 mbar absolute supports applications requiring a relatively deep industrial vacuum.
Typical Busch R5 RA 0205D Applications
The Busch R5 RA 0205D is commonly used where dependable high-capacity oil lubricated vacuum performance is required for continuous production.
› Food packaging production lines
› Tray sealing systems
› Thermoforming packaging machinery
› Food processing equipment
› Plastics processing machinery
› Vacuum conveying systems
› Centralised vacuum installations
› Printing and paper handling machinery
› CNC woodworking machinery
› General industrial process vacuum
New Busch R5 RA 0205D Vacuum Pump Supply
Vacuum Pumps UK can supply new Busch R5 RA 0205D vacuum pumps for existing machinery, planned replacement work and industrial installations.
Where the existing machine or customer specification requires the original Busch model, we can quote the correct pump and confirm the relevant motor, voltage and connection details.
Contact us with the existing pump nameplate or full model information for price and availability.
DVP LC205
Closely matched 205 m³/h oil lubricated vacuum pump
Cost-Effective DVP Alternative
Consider the DVP LC205
Where an exact Busch replacement is not essential, the DVP LC205 can provide a cost-effective alternative to the Busch R5 RA 0205D.
With a nominal capacity of 205 m³/h at 50Hz, 245 m³/h at 60Hz, a stated total final pressure of 0.5 mbar absolute and a 5.5 / 6.6 kW motor rating, the LC205 is closely matched to the principal flow and motor figures of the Busch pump.
The DVP LC205 is designed for continuous industrial duty and combines improved oil-air separation with quieter operation, straightforward oil inspection and simplified routine maintenance.
Standard equipment includes an oil check valve, exhaust mist eliminator, automatic floating oil recovery valve, continuously working gas ballast, shock mounts, an oil filter with bypass and a flexible motor coupling.
An anti-suck-back arrangement helps prevent oil from being drawn into the connected system if the pump stops while operating under vacuum.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Busch R5 RA 0205D and DVP LC205 Comparison
The comparison below shows the principal technical figures for each model. Final suitability should be checked against the machine, application and installation requirements.
| Specification | Busch R5 RA 0205D | DVP LC205 |
| Pump Technology | Single-stage oil lubricated rotary vane | Oil lubricated rotary vane |
| Nominal Capacity 50Hz | 200 m³/h | 205 m³/h |
| Nominal Capacity 60Hz | 240 m³/h | 245 m³/h |
| Ultimate Vacuum | 0.1 mbar absolute | 0.1 mbar absolute |
| Motor Power 50Hz | 5.5 kW | 5.5 kW |
| Motor Power 60Hz | 6.6 kW | 6.6 kW |
| Exhaust Oil Separation | Integrated separator elements | Exhaust mist eliminator and automatic oil recovery valve |
| Anti-Suck-Back Protection | Integrated non-return arrangement | Integrated anti-suck-back arrangement |
Important: The LC205 is a closely matched alternative rather than a dimensionally identical replacement. Mounting dimensions, inlet position, connection size, motor voltage, controls, required operating pressure and process conditions should always be checked.
Why Consider the DVP LC205?
Many customers searching for a Busch R5 RA 0205D require a dependable oil lubricated vacuum pump with approximately 200 m³/h nominal capacity rather than a specific manufacturer.
In these applications, the DVP LC205 provides closely matched capacity, the same stated motor rating, competitive pricing and direct technical support from the official DVP UK and Ireland Master Agent. Its stated final pressure is 0.5 mbar absolute, so application suitability should be checked where the deeper 0.1 mbar Busch specification is required.
Closely Matched Capacity
The LC205 provides 205 m³/h at 50Hz compared with 200 m³/h from the Busch RA 0205D.
Same Motor Rating
Both pumps have a stated motor rating of 5.5 kW at 50Hz and 6.6 kW at 60Hz.
Cost-Effective Alternative
The LC205 may provide a more economical replacement option where the application does not specifically require the Busch model.
Factory-Backed Support
Vacuum Pumps UK provides DVP application advice, genuine spares and UK workshop support.
Busch R5 RA 0205D Parts, Vanes and Service
VacAir Superstore is one of the UK’s leading independent suppliers of replacement vacuum pump vanes, service kits, separators, filters, oils and spare parts.
VacAir’s experienced Busch pump service specialists can assist with reduced vacuum, exhaust smoke, oil mist, oil leaks, overheating, excessive noise and internal pump damage.
Service Kits
Routine service and maintenance components for the Busch R5 RA 0205D.
Oil Separators
Replacement exhaust separators to help control oil mist and maintain reliable operation.
Spare Parts
Filters, seals, gaskets, couplings and repair components for the Busch R5 RA 0205D.
Service and Repair
Workshop inspection, servicing, repair and full Busch pump overhaul.
Busch R5 RA 0205D Frequently Asked Questions
What type of vacuum pump is the Busch R5 RA 0205D?
It is a single-stage oil lubricated rotary vane vacuum pump designed for continuous industrial, packaging and production applications.
What is the capacity of the Busch R5 RA 0205D?
The stated nominal pumping capacity is approximately 200 m³/h at 50Hz and 240 m³/h at 60Hz.
What ultimate vacuum does the Busch R5 RA 0205D achieve?
The stated ultimate vacuum is 0.1 mbar absolute at both 50Hz and 60Hz.
Can Vacuum Pumps UK supply a new Busch R5 RA 0205D?
Yes. Vacuum Pumps UK can supply new Busch R5 RA 0205D vacuum pumps, subject to specification and availability.
What is the DVP alternative to the Busch R5 RA 0205D?
The DVP LC205 is the closest DVP alternative by nominal pumping capacity, providing 205 m³/h at 50Hz and 245 m³/h at 60Hz.
How does the DVP LC205 compare technically?
The LC205 has a closely matched capacity and the same stated 5.5 / 6.6 kW motor rating. Its stated final pressure is 0.5 mbar absolute compared with 0.1 mbar absolute for the Busch RA 0205D.
Is the DVP LC205 a direct replacement?
Not necessarily. Capacity and motor rating are closely matched, but dimensions, connections, controls, required operating pressure and application conditions should be checked.
Can you supply Busch service parts?
Yes. Service kits, filters, separators, oils and other Busch pump components are available through our sister company VacAir Superstore.
Can my existing Busch RA 0205D be repaired?
Many pumps can be serviced or overhauled depending on their internal condition. VacAir can provide specialist Busch pump inspection, repair and refurbishment support.
Need a Busch R5 RA 0205D or DVP LC205?
Contact Vacuum Pumps UK for prices, availability, technical advice and replacement pump recommendations.
Send us your existing pump model and application details and we will advise on the most suitable option.
