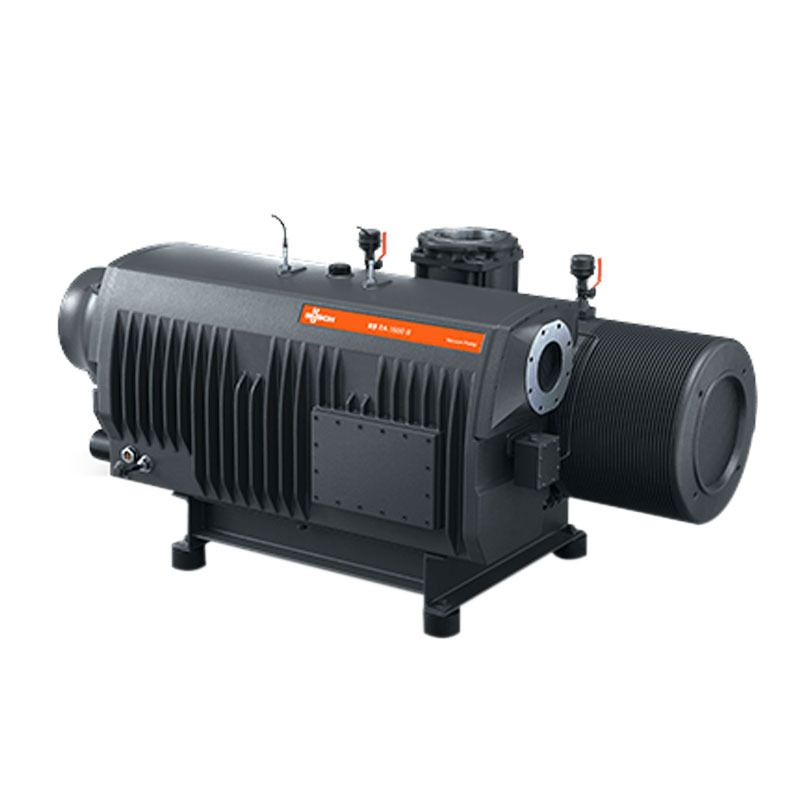

Busch R5 RA 1000 B Vacuum Pump
The Busch R5 RA 1000 B is a large single-stage oil lubricated rotary vane vacuum pump designed for continuous-duty industrial applications requiring high pumping capacity and dependable low-pressure performance.
Vacuum Pumps UK can supply new Busch R5 RA 1000 B vacuum pumps and provide technical advice for replacement installations.
Where an exact Busch replacement is not essential, we can assess the complete application and offer a suitable alternative pump or engineered vacuum pump system.
New Busch pumps, alternative pump options and engineered vacuum system support from Vacuum Pumps UK.
Need a new or replacement pump?
Send us the pump nameplate, motor details, application information and required operating pressure.
We can quote the Busch R5 RA 1000 B or assess a suitable alternative pump or system.
Pump Type
Oil Lubricated
single-stage rotary vane
Capacity
1000 / 1200 m³/h
50Hz / 60Hz
Ultimate Vacuum
0.1 mbar
absolute
Motor Power
22.0 / 30.0
kW 50Hz / 60Hz
Busch R5 RA 1000 B Overview
The Busch R5 RA 1000 B is part of the established Busch R5 range of oil lubricated rotary vane vacuum pumps.
It is a large single-stage pump developed for continuous-duty industrial applications requiring high pumping speed at low operating pressures and a nominal capacity of 1000 m³/h at 50Hz.
The RA 1000 B is suited to large packaging and food processing lines, plastics machinery, vacuum conveying equipment, centralised vacuum installations and other high-demand production processes where vacuum performance and production uptime are important.
Oil within the pump lubricates the working components, assists sealing and supports stable operating temperature. Integrated exhaust separator elements recover oil within the pump and help reduce oil mist from the exhaust.
Oil lubricated rotary vane pumps should not be allowed to run open to atmosphere for prolonged periods, as the high gas flow can rapidly load and saturate the exhaust separator elements.
Vacuum Pumps UK can assist with the supply of a new Busch R5 RA 1000 B where the original pump specification needs to be retained.
Busch R5 RA 1000 B Technical Specifications
The figures below provide a general technical reference for the standard Busch R5 RA 1000 B. Motor voltage, connection details and individual pump configuration should be confirmed before ordering.
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar absolute 50Hz / 60Hz |
Motor Power kW 50Hz / 60Hz |
| Busch R5 RA 1000 B | 1000 / 1200 | 0.1 / 0.1 | 22.0 / 30.0 |
Busch R5 RA 1000 B Pump Features
Single-Stage Rotary Vane
The single-stage oil lubricated rotary vane design provides strong pumping performance at low operating pressures.
Continuous Industrial Duty
The RA 1000 B is designed for continuous operation when correctly installed, operated and maintained.
High-Capacity Performance
A nominal pumping speed of 1000 m³/h at 50Hz supports large production machinery and high-demand vacuum installations.
Oil Mist Separation
Integrated exhaust separator elements help retain oil within the pump and reduce oil mist from the exhaust.
Low-Pressure Performance
The stated ultimate pressure of 0.1 mbar absolute supports applications requiring a relatively deep industrial vacuum.
Separator Protection
Correct system control is important because prolonged operation open to atmosphere can quickly load the exhaust separator elements.
Typical Busch R5 RA 1000 B Applications
The Busch R5 RA 1000 B is commonly used where dependable high-capacity oil lubricated vacuum performance is required for continuous industrial production.
› Large food packaging lines
› High-output tray sealing systems
› Thermoforming packaging machinery
› Food processing equipment
› Plastics processing machinery
› Vacuum conveying systems
› Centralised vacuum installations
› Printing and paper handling machinery
› Large vacuum chambers
› General industrial process vacuum
New Busch R5 RA 1000 B Vacuum Pump Supply
Vacuum Pumps UK can supply new Busch R5 RA 1000 B vacuum pumps for existing machinery, planned replacement work and large industrial installations.
Where the existing process, machine specification or customer requirement calls for the original Busch model, we can quote the correct pump and confirm the relevant motor, voltage and connection details.
Contact us with the existing pump nameplate or full model information for price and availability.
Busch R5 RA 1000 B Parts, Vanes and Service
If your existing Busch R5 RA 1000 B may still be repairable, our sister company VacAir Superstore provides specialist support for Busch pump servicing, workshop overhaul and replacement components.
VacAir Superstore is one of the UK’s leading independent suppliers of replacement vacuum pump vanes, service kits, separators, filters, oils and spare parts.
VacAir’s experienced Busch pump service specialists can assist with reduced vacuum, exhaust smoke, oil mist, oil leaks, overheating, excessive noise and internal pump damage.
Service Parts
Service kits, filters, seals, gaskets, couplings and repair components for Busch R5 maintenance.
Oil Separators
Replacement exhaust separators to help control oil mist and maintain reliable operation.
Service and Repair
Workshop inspection, servicing, repair and full Busch pump overhaul.
Busch R5 RA 1000 B Frequently Asked Questions
What type of vacuum pump is the Busch R5 RA 1000 B?
It is a large single-stage oil lubricated rotary vane vacuum pump designed for continuous high-capacity industrial applications.
What is the capacity of the Busch R5 RA 1000 B?
The stated nominal pumping capacity is approximately 1000 m³/h at 50Hz and 1200 m³/h at 60Hz.
What ultimate vacuum does the Busch R5 RA 1000 B achieve?
The stated ultimate vacuum is 0.1 mbar absolute at both 50Hz and 60Hz.
Can Vacuum Pumps UK supply a new Busch R5 RA 1000 B?
Yes. Vacuum Pumps UK can supply new Busch R5 RA 1000 B vacuum pumps, subject to specification and availability.
Can you offer an alternative to the Busch R5 RA 1000 B?
Yes. Where an exact Busch replacement is not essential, we can assess the application and offer a suitable alternative pump or engineered vacuum pump system.
Would the alternative necessarily be one large pump?
Not necessarily. Depending on the process and production requirements, the most suitable solution may be one large pump, a duty and standby arrangement or a modular multi-pump system.
Is an alternative pump or system a direct replacement?
Not necessarily. Pumping performance, operating pressure, dimensions, connections, motor details, controls, cooling and process conditions should be checked before changing pump or system configuration.
Why should the pump not run open to atmosphere?
Prolonged operation open to atmosphere creates a high gas flow through the pump and can quickly load or saturate the exhaust separator elements.
Can you supply Busch service parts?
Yes. Service kits, filters, separators, oils and other Busch pump components are available through our sister company VacAir Superstore.
Can my existing Busch RA 1000 B be repaired?
Many pumps can be serviced or overhauled depending on their internal condition. VacAir can provide specialist Busch pump inspection, repair and refurbishment support.
Need a Busch R5 RA 1000 B or an Alternative Pump System?
Contact Vacuum Pumps UK for prices, availability, technical advice and replacement pump or system recommendations.
Send us your existing pump details and application information and we will advise on the most suitable option.
