DVP CPAP Centralised Vacuum Systems
DVP CPAP Centralised Vacuum Systems deliver modular, energy-efficient dry vacuum supply for industrial manufacturing, centralised extraction networks, and medical facilities.
Available in Duplex (2x) and Triplex (3x) arrangements built with DVP PA 155 or PA 315 dry-running vacuum claw pumps, CPAP stations automatically control vacuum levels to match facility consumption, significantly slashing energy consumption while guaranteeing process redundancy.
Vacuum Pumps UK is the official UK & Ireland Master Agent for DVP Vacuum Technology.
Designing or upgrading a central vacuum system?
Send us your facility vacuum requirement or current system specs and our engineering team will calculate the ideal CPAP claw system configuration.
We optimise vacuum flow rates, control staging, and pipework connections for seamless installation.
Configurations
Duplex & Triplex
2x or 3x PA claw pumps
Nominal Capacity
310 – 750 m³/h
182.6 – 441.8 CFM
Ultimate Vacuum
150 – 200 mbar
total final pressure Abs.
System Power
6.0 – 16.5 kW
multi-motor staged control
DVP CPAP System Architecture & Efficiency
Centralised vacuum installations in manufacturing plants, processing facilities, and hospitals frequently experience fluctuating demand throughout the working day. Operating single large vacuum pumps continuously leads to wasted electricity, excessive heat generation, and high wear. DVP CPAP Centralised Vacuum Systems solve this challenge through intelligent, multi-pump staging.

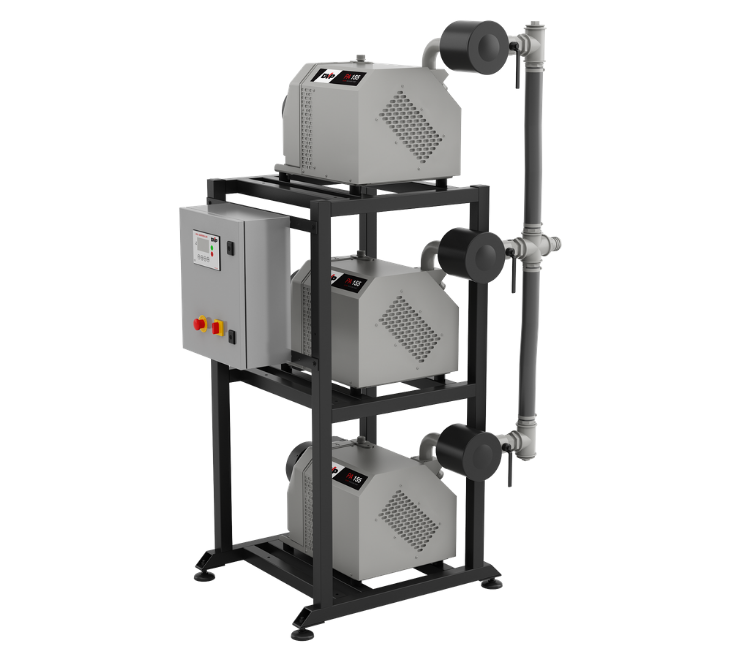

Every CPAP system is built around two (Duplex) or three (Triplex) heavy-duty DVP PA series dry claw vacuum pumps (PA 155 or PA 315) mounted onto a space-saving vertical steel framework. An integrated electric control panel monitors system vacuum in real time. As connected machinery or processes demand more airflow, the control panel automatically powers up additional claw pumps. When demand drops, idle pumps are automatically shut down, ensuring energy consumption matches exact operational requirements.
Because each individual pump is fitted with its own intake isolation ball valve and high-efficiency FCM cartridge filter, routine maintenance or servicing can be performed on individual pumps without interrupting vacuum supply to the rest of the facility. Rubber anti-vibration shock mounts level the vertical assembly and isolate structural vibration.
CPAP Centralised System Range & Specifications
Compare performance parameters across CPAP Duplex and Triplex configurations:
| System Model | Pump Configuration | Nominal Flow Rate m³/h (50Hz / 60Hz) |
Nominal Flow Rate (CFM) |
Final Pressure (mbar Abs.) |
Total Motor Power (kW) |
|---|---|---|---|---|---|
| CPAP 2×155 | 2 x PA 155 | 310 / 372 | 182.6 / 219.2 | 150 | 2 x 3.0 kW |
| CPAP 2×315 | 2 x PA 315 | 500 / 600 | 294.5 / 353.4 | 200 | 2 x 5.5 kW |
| CPAP 3×155 | 3 x PA 155 | 465 / 558 | 273.9 / 328.7 | 150 | 3 x 3.0 kW |
| CPAP 3×315 | 3 x PA 315 | 750 / 900 | 441.8 / 530.1 | 200 | 3 x 5.5 kW |
Key Application Fields
DVP CPAP centralised systems deliver clean, oil-free vacuum across municipal, medical, and multi-station manufacturing operations:
Medical & Surgical Vacuum: Centralised hospital suction networks, dental clinic suction systems, and medical gas extraction
Anesthetic Gas Evacuation: Dedicated scavenger vacuum systems for surgical suites and veterinary clinics
Centralised Woodworking Facilities: Multi-CNC routing table hold-down manifolds and central factory vacuum networks
Pneumatic Vacuum Conveying: Centralised transfer of dry plastic granules, powders, and food ingredients across multiple processing lines
Food Processing & Pasta Sector: Continuous food packaging lines, automated tray sealing, and vacuum extrusion handling
Chemical & Pharmaceutical Systems: Inert gas treatment, solvent degassing, and central lab vacuum supply
Environmental & Water Treatment: Soil vapor extraction (SVE) plants, aeration basins, and environmental remediation projects
Dairy & Milking Parlours: Continuous centralised vacuum supply for large-scale agricultural milking systems
Why Install a DVP CPAP Centralised Vacuum Station?
Decentralised standalone pumps located at every machine consume valuable floor space, create localised heat and noise, and demand separate electrical drop lines and maintenance schedules. Standardising on a centralised DVP CPAP vacuum system consolidates equipment into a single utility room while lowering overall electrical demands by up to 40%.
By utilising dry claw technology (PA series), the CPAP range eliminates oil contamination risks in the process exhaust while maintaining constant volumetric performance. The non-contact rotor design eliminates internal friction wear, ensuring long service intervals and minimal cost of ownership.
Vacuum Pumps UK provides technical support, system calculation assistance, genuine DVP replacement parts, intake filters, and full installation advice across the UK and Ireland.
Key Technical Features
Compact Vertical Design
Pumps are mounted on a heavy-duty vertical framework to deliver maximum pumping capacity within a minimal floor footprint.
Automated Staging Panel
Integrated 400V 50/60Hz electrical panel automatically manages pump rotation, pressure regulation, and demand staging.
Continuous Operational Redundancy
Inlet ball valves allow individual pumps to be isolated for maintenance without taking the main vacuum network offline.
FCM Intake Filtration
High-capacity FCM cartridge filters protect every claw pump against particulates, dust, and process impurities.
Central System Replacement & Retrofit Guide
Replacing Busch Mink Duplex/Triplex Systems?
Upgrading an existing Busch Mink multi-claw skid? DVP CPAP systems offer direct capacity equivalents with modern integrated staged controls.
Replacing Elmo Rietschle Central Systems?
The DVP CPAP range provides drop-in replacement options for Rietschle multi-pump claw installations across industrial plants.
Replacing Central Lubricated Vane Systems
Replace older oil-sealed central systems with dry CPAP claw technology to eliminate exhaust oil mist, oil changes, and fluid contamination risks.
Medical Vacuum System Upgrades
Upgrading medical vacuum or anesthetic gas evacuation systems? CPAP stations comply with dry, reliable suction standards.
Need Help Sizing a Central Vacuum System?
Our vacuum engineering specialists calculate pipe loss, coincidental load factors, and peak flow requirements to specify the exact CPAP setup.
Send us a photograph of your existing central pump system nameplate or system manifold. We will evaluate flow capacity and present a high-efficiency DVP CPAP alternative.
Spare Parts, Filter Cartridges & Servicing
FCM Replacement Elements
Genuine replacement filter cartridges for FCM intake filters to maintain system protection and airflow.
Isolation & Non-Return Valves
Inlet ball valves, check valves, and manifold replacement hardware for CPAP vertical frames.
PA Maintenance Kits
Complete DVP spare part kits including gearbox oil, shaft gaskets, and rubber shock mounts.
On-Site UK Field Service
Comprehensive routine maintenance, control panel calibration, and overhaul carried out alongside our engineering division, VacAir Superstore.
DVP CPAP Systems Frequently Asked Questions
What is a CPAP centralised vacuum pump system?
A DVP CPAP system is a skid-mounted vacuum station featuring two (Duplex) or three (Triplex) dry claw vacuum pumps connected to a central electrical control panel. It maintains vacuum across a centralised pipe network by starting or stopping individual pumps automatically as process demand changes.
How does a centralised vacuum system save energy?
Instead of running large single pumps continuously at full electrical power, a CPAP system automatically stages individual claw pumps on or off based on line pressure. During periods of lower demand, extra pumps shut down, lowering kilowatt consumption significantly.
What models are available in the CPAP series?
The range includes CPAP 2×155 (310 m³/h), CPAP 2×315 (500 m³/h), CPAP 3×155 (465 m³/h), and CPAP 3×315 (750 m³/h).
Can individual pumps be isolated for servicing while the system runs?
Yes. Every claw pump on a CPAP frame features an individual inlet ball valve. Closing the ball valve isolates that specific pump for routine maintenance or filter changes without interrupting vacuum to the main facility line.
Are DVP CPAP centralised systems suitable for medical vacuum?
Yes. CPAP systems are widely used in medical vacuum systems, dental clinics, and anesthetic gas evacuation networks due to their dry, oil-free operation, redundancy, and staged control panel reliability.
What intake filtration is included on CPAP systems?
Each pump is equipped with an FCM intake cartridge filter designed to trap dust and foreign particulates before air enters the claw rotation chamber.
What electrical supply is required for DVP CPAP systems?
Standard CPAP control panels are configured for 400V 50-60Hz 3-phase power supplies, managing pump staging and motor protection.
Who services DVP CPAP systems in the UK?
Vacuum Pumps UK provides technical support and DVP spare parts, while our dedicated servicing division, VacAir Superstore, delivers full UK on-site maintenance and overhaul services.
