Discontinued Pump Model
This model is no longer part of the current production range.
Contact Vacuum Pumps UK for replacement pump advice, spare parts, service or repair support.

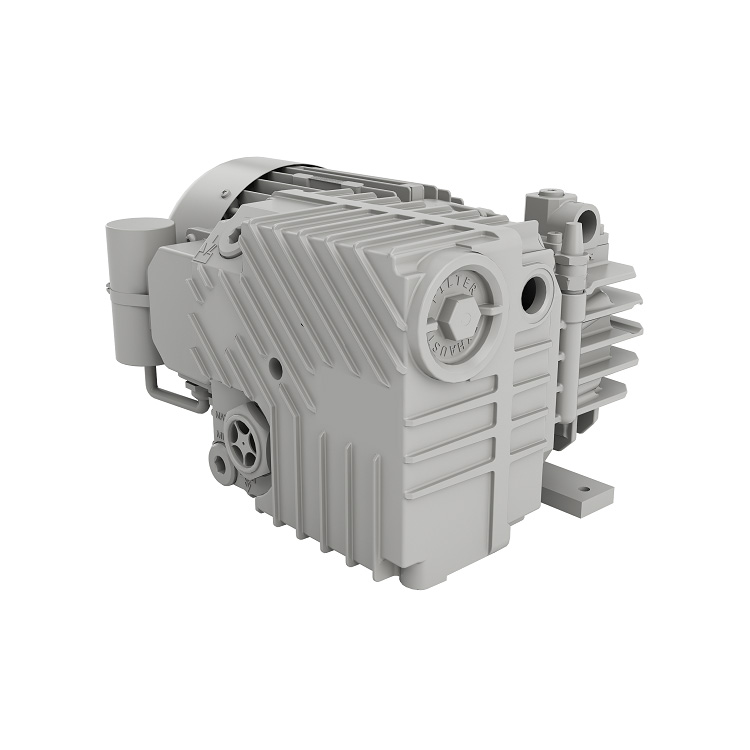

Current replacement: The recommended replacement for this pump is the
DVP LC 20 or view our oil lubricated vacuum pump page for other alternatives.
The limited dimensions, the moderate noise level, the simplified control and maintenance operations, are the main features of LB 18 lubricated rotary vane vacuum pump. The damping and recovery system, integral in the oil box, eliminates oil vapors at the exhaust. Moreover, an antisuck-back device prevents the contamination of the user system should the pump to stop during operations. The LB 18 is suitable for continuous suction within a pressure range from 400 to 2 mbar (Abs.).
Nominal capacity: 18 – 21 m3
| Nominal capacity m3/h | Max water vapour pumping rate kg/h | Total final pressure mBar (ass) | Motor power Kw50Hz/60Hz | |
| LB18 | 18/21 | 0.11 | 2 | 0.75/0.90 |
The LB 18 pump is equipped with:
Main application fields:
Outgassing, pick and place of products and materials.
Our experienced team can help with replacement pumps, new installations, servicing, spare parts and vacuum problems. Call us today for friendly technical advice and a competitive quotation.
