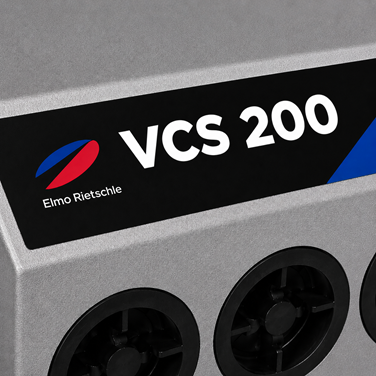

Elmo Rietschle V-VCS 200 Vacuum Pump
The Elmo Rietschle V-VCS 200 is an oil lubricated vacuum pump providing 200 m³/h at 50Hz for higher-capacity industrial vacuum duties. Published performance is 200 / 240 m³/h at 50Hz / 60Hz with an ultimate pressure of 0.5 mbar absolute.
The V-VCS 200 combines 200 / 240 m³/h nominal capacity with a standard ultimate pressure of 0.5 mbar absolute. It is a natural size to consider for packaging machinery and process equipment.
Replacement pumps, spares, service and technical support from Vacuum Pumps UK and VacAir Superstore.
Need a replacement pump?
Send us the pump nameplate, application and installation details.
Pump Type
Oil Lubricated
rotary vane
Capacity
200 / 240
m³/h 50Hz / 60Hz
Ultimate Vacuum
0.5 mbar
absolute
Motor
4 & 5.5 / 4.8 & 6.6
kW published configurations
Elmo Rietschle V-VCS 200 Overview
The V-VCS 200 combines 200 / 240 m³/h nominal capacity with a standard ultimate pressure of 0.5 mbar absolute. It sits below the larger V-VCS 300 and is a natural size to consider for packaging machinery and general process equipment.
Elmo Rietschle describes the V-VCS 200 and 300 platform as oil-flooded rotary vane technology with reduced size, weight and noise, and easier integration into OEM machinery than previous Elmo Rietschle models. The standard V-VCS 200 and V-VCS 300 are published at 0.5 mbar absolute.
Oil lubricates the internal mechanism, assists sealing and helps control operating temperature. Oil condition, inlet restriction, separator condition and internal wear should therefore all be considered when an existing pump has lost performance.
Published motor options for the V-VCS 200 is 4.0 & 5.5 / 4.8 & 6.6 kW at 50Hz / 60Hz. Exact voltage, phase, motor build and pump configuration should always be checked from the installed unit.
Elmo Rietschle V-VCS 200 Technical Specifications
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar abs. 50Hz / 60Hz |
Motor kW 50Hz / 60Hz |
| V-VCS 200 | 200 / 240 | 0.5 / 0.5 | 4.0 & 5.5 / 4.8 & 6.6 |
Typical Applications
› packaging and processing machinery
› machine and local vacuum installations
› vacuum forming and plastics machinery
› printing and paper converting equipment
› materials handling and lifting systems
› continuous industrial evacuation duties
The correct pump depends on more than nominal capacity. Required working pressure, evacuation time, pipe losses, process gas, vapour or contamination load and duty cycle can all affect selection.
For replacement work, the existing pump nameplate and photographs of the installation provide a useful starting point.
DVP LC205
Oil lubricated rotary vane vacuum pump
Comparable DVP Alternative
Consider the DVP LC205
The DVP LC205 is a particularly close capacity comparison, with a higher pumping speed of 205 / 245 m³/h against 200 / 240 m³/h for the V-VCS 200.
The DVP pump provides a deeper vacuum of 0.1 mbar abs which is often beneficial to the application and production.
Headline specifications are only the first stage of a replacement check. Pumping speed at the actual operating pressure, dimensions, mounting points, inlet and exhaust connections, motor supply and available installation space must also be considered.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Elmo Rietschle V-VCS 200 Replacement Comparison
The figures below provide a quick initial comparison. They do not establish interchangeability without checking the machine and its operating conditions.
| Specification | V-VCS 200 | DVP LC205 |
| Nominal Capacity 50Hz | 200 m³/h | 205 m³/h |
| Nominal Capacity 60Hz | 240 m³/h | 245 m³/h |
| Ultimate Vacuum | 0.5 mbar abs. | 0.1 mbar abs. |
Elmo Rietschle V-VCS 200 Parts, Oil, Service and Repair
Routine maintenance and pump condition should be assessed before a complete replacement is assumed necessary. A loss of vacuum can result from service condition, leakage, exhaust separation problems or internal wear.
VacAir Superstore, our sister company, can assist with Elmo Rietschle service parts, oil separators, vacuum pump oil, routine maintenance and workshop repair.
Spare Parts
Service and repair components can be identified from the model and pump build.
Oil Separators
Correct exhaust separation helps control oil mist and supports oil recirculation.
Vacuum Pump Oil
Oil grade and condition are important to lubrication, sealing and pump performance.
Service & Maintenance
Routine service can include oil, filters, separators, inspection and vacuum testing.
Repair & Overhaul
Workshop strip-down and inspection can establish whether overhaul remains economical.
Elmo Rietschle V-VCS 200 Frequently Asked Questions
What type of vacuum pump is the Elmo Rietschle V-VCS 200?
It is a single-stage oil lubricated rotary vane vacuum pump intended for industrial vacuum duty.
What is the nominal pumping capacity?
The published capacity is 200 m³/h at 50Hz and 240 m³/h at 60Hz.
What ultimate vacuum can the V-VCS 200 achieve?
The stated ultimate pressure is 0.5 mbar absolute.
Can an existing V-VCS 200 be serviced or repaired?
Potentially, yes. The practical choice depends on internal condition, parts availability and the fault. VacAir can investigate performance loss and provide servicing or workshop repair.
What DVP replacement should be considered?
Vacuum Pumps UK can assess the DVP LC205 as a possible alternative. The final choice must be based on the required operating point and physical installation, not model capacity alone.
Need Support for an Elmo Rietschle V-VCS 200?
Contact Vacuum Pumps UK for replacement advice, or VacAir support for spare parts, separators, oil, servicing and workshop repair.
We can help you decide whether to maintain, repair or replace the existing pump.
