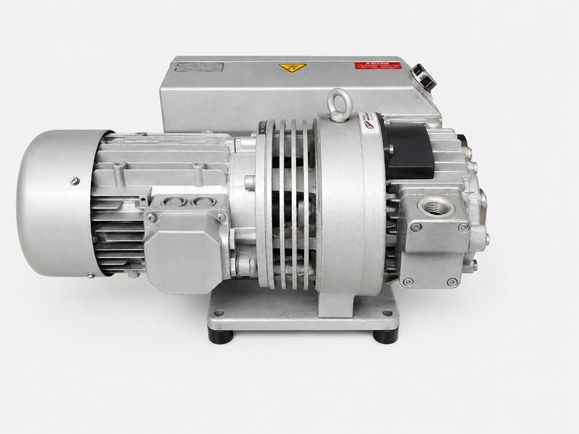

Elmo Rietschle VCA100 Vacuum Pump
The Elmo Rietschle VCA100 is an oil lubricated rotary vane vacuum pump rated at 100 / 120 m³/h with a stated ultimate pressure of 0.5 mbar absolute.
It is a practical industrial pump size for applications where the required vacuum level is just as important as nominal pumping capacity.
Replacement pumps, spares, service and technical support from Vacuum Pumps UK and VacAir Superstore.
Need a replacement pump?
Send us the pump nameplate, application and installation details.
Pump Type
Oil Lubricated
rotary vane
Capacity
100 / 120
m³/h 50Hz / 60Hz
Ultimate Vacuum
0.5 mbar
absolute
Motor 3PH
2.20 / 3.00
kW 50Hz / 60Hz
Elmo Rietschle VCA100 Overview
As the highest-capacity model in the VCA15–100 group, the VCA100 is suited to larger machinery and production duties. Its 100 / 120 m³/h nominal pumping speed is combined with the VCA series’ 0.5 mbar absolute ultimate pressure.
Oil lubricates and seals the pumping mechanism and contributes to heat control during operation. Correct oil condition, inlet filtration and exhaust separation are therefore important to maintaining performance.
The published three-phase motor rating is 2.20 / 3.00 kW at 50Hz / 60Hz. Exact voltage and build should be confirmed from the existing pump nameplate.
Vacuum Pumps UK can assess replacement requirements, while VacAir Superstore can support existing pumps with parts, oil separators, oil, servicing and workshop repair.
Elmo Rietschle VCA100 Technical Specifications
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar abs. 50Hz / 60Hz |
Motor 3PH kW 50Hz / 60Hz |
| VCA100 | 100 / 120 | 0.5 / 0.5 | 2.20 / 3.00 |
Typical Applications
› medium and larger packaging lines
› thermoforming machinery
› central vacuum installations
› plastics processing equipment
› printing and converting machinery
› vacuum lifting and production systems
Actual suitability depends on working pressure, evacuation time, process gas, contamination level and duty cycle. The VCA100 should therefore be selected on the complete application rather than capacity alone.
Applications involving significant vapour or aggressive process gases should be reviewed before using a standard oil lubricated pump.
DVP LC106
Oil lubricated rotary vane vacuum pump
106 / 127 m³/h
Comparable DVP Alternative
Consider the DVP LC106
The DVP LC106 provides a modest increase in nominal capacity at 106 / 127 m³/h and a deeper stated ultimate pressure of 0.1 mbar absolute, both making the DVP the ideal choice to replace the Elmo Rietschle.
The VCA100 is rated at 100 / 120 m³/h, compared with 106 / 127 m³/h for the DVP LC106.
Final suitability should be checked against pumping speed at the actual operating pressure, dimensions, mounting, inlet and exhaust position, connections, motor supply and process conditions.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Elmo Rietschle VCA100 Replacement Comparison
The principal figures provide a useful first comparison, but do not establish interchangeability without an application check.
| Specification | VCA100 | DVP LC106 |
| Nominal Capacity 50Hz | 100 m³/h | 106 m³/h |
| Nominal Capacity 60Hz | 120 m³/h | 127 m³/h |
| Ultimate Vacuum | 0.5 mbar abs. | 0.1 mbar abs. |
Elmo Rietschle VCA100 Parts, Oil Separators, Oil, Service and Repair
Maintaining the existing VCA100 can be a practical option where the pump is mechanically sound. VacAir Superstore supports Elmo Rietschle oil lubricated pumps with consumables, service parts and workshop support.
Oil Separators
Exhaust separators help control oil mist and support oil recovery.
Vacuum Pump Oil
Correct oil grade and condition support sealing, lubrication and performance.
Service & Maintenance
Planned maintenance can include oil, filters, separators, inspection and vacuum testing.
Repair & Overhaul
Workshop inspection can establish whether repair or overhaul is worthwhile.
Elmo Rietschle VCA100 Frequently Asked Questions
What type of vacuum pump is the Elmo Rietschle VCA100?
It is an oil lubricated rotary vane vacuum pump intended for industrial vacuum duty.
What is the VCA100 pumping capacity?
The stated nominal capacity is 100 m³/h at 50Hz and 120 m³/h at 60Hz.
What vacuum level can the VCA100 achieve?
The stated ultimate pressure is 0.5 mbar absolute.
Can the existing VCA100 be serviced or repaired?
Yes. Depending on condition, servicing or workshop repair may be a practical alternative to replacement. VacAir can also supply oil separators, oil and replacement parts.
What replacement pump should I consider?
Where an exact Elmo Rietschle replacement is not essential, Vacuum Pumps UK can assess the DVP LC106 against the application and installation.
Need Support for an Elmo Rietschle VCA100?
Contact Vacuum Pumps UK for replacement advice, or VacAir support for spare parts, separators, oil, servicing and workshop repair.
We can help you decide whether to maintain, repair or replace the existing pump.
