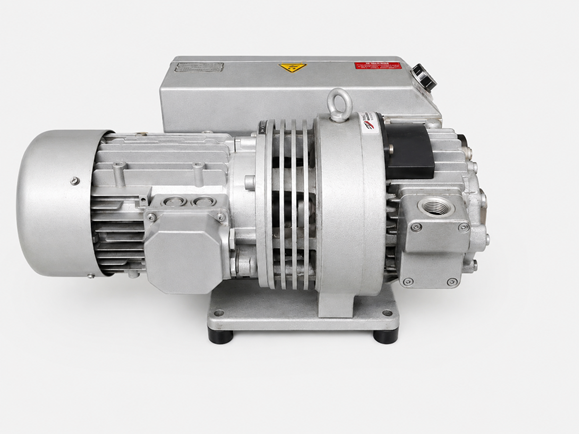

Elmo Rietschle VCA40 Vacuum Pump
The Elmo Rietschle VCA40 is an oil lubricated rotary vane vacuum pump rated at 40.0 / 48.0 m³/h with a stated ultimate pressure of 0.5 mbar absolute.
It is a practical industrial pump size for applications where the required vacuum level is just as important as nominal pumping capacity.
Replacement pumps, spares, service and technical support from Vacuum Pumps UK and VacAir Superstore.
Need a replacement pump?
Send us the pump nameplate, application and installation details.
Pump Type
Oil Lubricated
rotary vane
Capacity
40.0 / 48.0
m³/h 50Hz / 60Hz
Ultimate Vacuum
0.5 mbar
absolute
Motor 3PH
1.10 / 1.30
kW 50Hz / 60Hz
Elmo Rietschle VCA40 Overview
The VCA40 moves the range into a capacity class frequently encountered on production machinery. Its published 0.5 mbar absolute ultimate pressure should be considered alongside pumping speed at the machine’s normal working pressure.
Oil lubricates and seals the pumping mechanism and contributes to heat control during operation. Correct oil condition, inlet filtration and exhaust separation are therefore important to maintaining performance.
The published three-phase motor rating is 1.10 / 1.30 kW at 50Hz / 60Hz. Published single-phase motor data is 1.50 / 1.80 kW at 50Hz / 60Hz. Exact voltage and build should be confirmed from the existing pump nameplate.
Vacuum Pumps UK can assess replacement requirements, while VacAir Superstore can support existing pumps with parts, oil separators, oil, servicing and workshop repair.
Elmo Rietschle VCA40 Technical Specifications
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar abs. 50Hz / 60Hz |
Motor 3PH kW 50Hz / 60Hz |
| VCA40 | 40.0 / 48.0 | 0.5 / 0.5 | 1.10 / 1.30 |
Typical Applications
› packaging and chamber machines
› thermoforming equipment
› printing and converting machinery
› vacuum lifting systems
› plastics processing
› central and general factory vacuum
Actual suitability depends on working pressure, evacuation time, process gas, contamination level and duty cycle. The VCA40 should therefore be selected on the complete application rather than capacity alone.
Applications involving significant vapour or aggressive process gases should be reviewed before using a standard oil lubricated pump.
DVP LC40
Oil lubricated rotary vane vacuum pump
40 / 48 m³/h
Comparable DVP Alternative
Consider the DVP LC40
The DVP LC40 matches the VCA40 nominal capacity at both 50Hz and 60Hz. Its stated final pressure is deeper at 0.1 mbar absolute, often beneficial for the application, making it a strong comparison candidate subject to an installation check.
The VCA40 is rated at 40.0 / 48.0 m³/h, compared with 40 / 48 m³/h for the DVP LC40.
Final suitability should be checked against pumping speed at the actual operating pressure, dimensions, mounting, inlet and exhaust position, connections, motor supply and process conditions.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Elmo Rietschle VCA40 Replacement Comparison
The principal figures provide a useful first comparison, but do not establish interchangeability without an application check.
| Specification | VCA40 | DVP LC40 |
| Nominal Capacity 50Hz | 40.0 m³/h | 40 m³/h |
| Nominal Capacity 60Hz | 48.0 m³/h | 48 m³/h |
| Ultimate Vacuum | 0.5 mbar abs. | 0.1 mbar abs. |
Elmo Rietschle VCA40 Parts, Oil Separators, Oil, Service and Repair
Maintaining the existing VCA40 can be a practical option where the pump is mechanically sound. VacAir Superstore supports Elmo Rietschle oil lubricated pumps with consumables, service parts and workshop support.
Oil Separators
Exhaust separators help control oil mist and support oil recovery.
Vacuum Pump Oil
Correct oil grade and condition support sealing, lubrication and performance.
Service & Maintenance
Planned maintenance can include oil, filters, separators, inspection and vacuum testing.
Repair & Overhaul
Workshop inspection can establish whether repair or overhaul is worthwhile.
Elmo Rietschle VCA40 Frequently Asked Questions
What type of vacuum pump is the Elmo Rietschle VCA40?
It is an oil lubricated rotary vane vacuum pump intended for industrial vacuum duty.
What is the VCA40 pumping capacity?
The stated nominal capacity is 40.0 m³/h at 50Hz and 48.0 m³/h at 60Hz.
What vacuum level can the VCA40 achieve?
The stated ultimate pressure is 0.5 mbar absolute.
Can the existing VCA40 be serviced or repaired?
Yes. Depending on condition, servicing or workshop repair may be a practical alternative to replacement. VacAir can also supply oil separators, oil and replacement parts.
What replacement pump should I consider?
Where an exact Elmo Rietschle replacement is not essential, Vacuum Pumps UK can assess the DVP LC40 against the application and installation.
Need Support for an Elmo Rietschle VCA40?
Contact Vacuum Pumps UK for replacement advice, or VacAir support for spare parts, separators, oil, servicing and workshop repair.
We can help you decide whether to maintain, repair or replace the existing pump.
