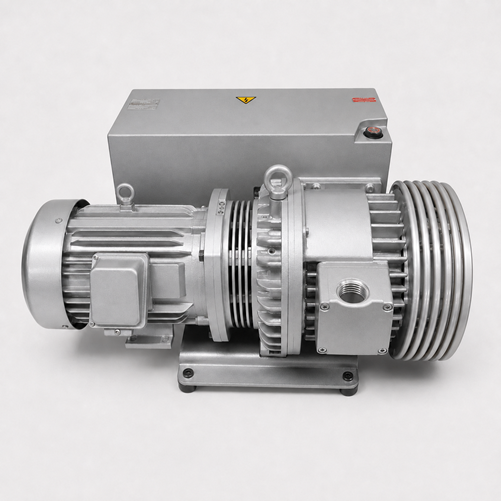

Elmo Rietschle VCEH100 Vacuum Pump
The Elmo Rietschle VCEH100 is an oil flooded rotary vane vacuum pump rated at 100 / 120 m³/h with a stated ultimate pressure of 10.0 mbar absolute.
The smallest VCEH model in this group, it combines 100 m³/h capacity with a 10 mbar absolute ultimate vacuum for medium-capacity industrial duties.
Replacement pumps, spares, service and technical support from Vacuum Pumps UK and VacAir Superstore.
Need a replacement pump?
Send us the pump nameplate, application and installation details.
Pump Type
Oil Lubricated
rotary vane
Capacity
100 / 120
m³/h 50Hz / 60Hz
Ultimate Vacuum
10.0 mbar
absolute
Motor 3PH
2.20 / 3.00
kW 50Hz / 60Hz
Elmo Rietschle VCEH100 Overview
The smallest VCEH model in this group, it combines 100 m³/h capacity with a 10 mbar absolute ultimate vacuum for medium-capacity industrial duties.
Oil lubricates and seals the pumping mechanism and assists heat control. The inlet filtration, oil condition and exhaust oil-mist separation are therefore important to reliable performance.
The published three-phase motor rating is 2.20 / 3.00 kW at 50Hz / 60Hz. Exact voltage and build should be confirmed from the existing pump nameplate.
Vacuum Pumps UK can assess replacement requirements, while VacAir Superstore can support existing pumps with parts, oil separators, oil, servicing and workshop repair.
Elmo Rietschle VCEH100 Technical Specifications
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar abs. 50Hz / 60Hz |
Motor 3PH kW 50Hz / 60Hz |
| VCEH100 | 100 / 120 | 10.0 / 10.0 | 2.20 / 3.00 |
Typical Applications
› packaging machinery
› printing and paper handling
› vacuum lifting and clamping
› plastics processing
› general process vacuum
› factory vacuum duties
Actual suitability depends on working pressure, pumping speed at that pressure, process gas, contamination and duty cycle. Replacement selection should therefore consider the complete machine or process.
Applications involving significant vapour or aggressive gases should be reviewed before selecting a standard oil lubricated pump.
DVP LC106
Oil lubricated rotary vane vacuum pump
106 / 127 m³/h
Comparable DVP Alternative
Consider the DVP LC106
The DVP LC106 has more flow with a nominal capacity at 106 / 127 m³/h, and reaches a substantially deeper 0.1 mbar absolute. More air evacuated with a deeper vacuum reached is often beneficial to applications, making the DVP pump an ideal alternative to the Elmo Rietschle pump.
Final suitability should be checked against the duty point, mounting dimensions, inlet position, connection size, motor voltage and process conditions.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Elmo Rietschle VCEH100 Replacement Comparison
The figures below are a starting point only. Performance at the actual working pressure can be more important than nominal free-air capacity.
| Specification | VCEH100 | DVP LC106 |
| Nominal Capacity 50Hz | 100 m³/h | 106 m³/h |
| Nominal Capacity 60Hz | 120 m³/h | 127 m³/h |
| Ultimate Vacuum | 10.0 mbar abs. | 0.1 mbar abs. |
| Motor Power 50Hz | 2.20 kW | 2.2 kW |
| Motor Power 60Hz | 3.00 kW | 2.7 kW |
Elmo Rietschle VCEH100 Parts, Oil Separators, Oil, Service and Repair
Maintaining an existing VCEH100 can be a practical option where the pump is mechanically sound. VacAir Superstore supports Elmo Rietschle oil lubricated pumps with consumables, service parts and workshop repair.
Oil Separators
Correct exhaust separation helps control oil mist and oil recovery.
Service & Maintenance
Planned servicing can include oil, filters, separators and vacuum testing.
Repair & Overhaul
Workshop inspection can establish whether repair or overhaul is worthwhile.
Elmo Rietschle VCEH100 Frequently Asked Questions
What type of pump is the VCEH100?
It is an oil flooded rotary vane vacuum pump for industrial vacuum duty.
What is its pumping capacity?
100 m³/h at 50Hz and 120 m³/h at 60Hz.
What is the ultimate vacuum?
The stated ultimate pressure is 10.0 mbar absolute.
Can an existing VCEH100 be repaired?
Depending on condition, servicing or workshop overhaul may be a practical alternative to replacement.
What replacement should I consider?
Vacuum Pumps UK can assess the DVP LC106 where an exact Elmo Rietschle replacement is not essential.
Need Support for an Elmo Rietschle VCEH100?
Contact Vacuum Pumps UK for replacement advice, or VacAir support for spare parts, separators, oil, servicing and workshop repair.
We can help you decide whether to maintain, repair or replace the existing pump.
