Becker O 5.16 Vacuum Pump
The Becker O 5.16 is a compact oil lubricated rotary vane vacuum pump designed for dependable continuous operation on small machinery, packaging equipment, laboratory systems and general OEM vacuum applications.
Vacuum Pumps UK can supply new Becker O 5.16 vacuum pumps and provide technical advice for replacement pump installations.
Where an exact Becker replacement is not essential, we can assess whether the DVP MD 16 offers a suitable and cost-effective alternative with closely matched pumping capacity and vacuum performance.
New Becker pumps, DVP alternatives and technical application support from Vacuum Pumps UK.
Need a new or replacement pump?
Send us the model number, motor details and application information.
We can quote the Becker O 5.16 or advise whether the DVP MD 16 is suitable.
Pump Type
Oil Lubricated
rotary vane pump
Capacity
16 / 19 m³/h
50Hz / 60Hz
Ultimate Vacuum
2 mbar
absolute
Motor Power
0.55 / 0.66
kW 50Hz / 60Hz
Becker O 5.16 Overview
The Becker O 5.16 is a compact oil lubricated rotary vane vacuum pump designed for continuous industrial service where dependable vacuum performance and modest pumping capacity are required.
With a nominal pumping speed of 16 m³/h at 50Hz, it is well suited to packaging machines, medical and laboratory equipment, vacuum holding duties and other compact OEM machinery.
Oil within the pump lubricates the working components, assists sealing and helps control operating temperature. Integrated exhaust separation helps recover oil and reduce oil mist from the exhaust.
Vacuum Pumps UK can assist with the supply of a new Becker O 5.16 where the original pump specification needs to be retained.
Becker O 5.16 Technical Specifications
The figures below provide a general technical reference for the standard Becker O 5.16. Motor voltage, connection details and individual pump configuration should be confirmed before ordering.
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar absolute 50Hz / 60Hz |
Motor Power kW 50Hz / 60Hz |
| Becker O 5.16 | 16.0 / 19.0 | 2.0 / 2.0 | 0.55 / 0.66 |
Becker O 5.16 Pump Features
Oil Lubricated Rotary Vane
Oil provides lubrication and sealing within the pumping chamber while supporting stable vacuum performance.
Compact Pump Design
The compact construction is suited to smaller machines and OEM installations where available space is limited.
Integrated Exhaust Separation
The pump incorporates exhaust separation to help retain oil and minimise oil mist emissions.
Continuous Duty Capability
The O 5.16 is intended for continuous operation when correctly selected, installed and maintained.
Medium Flow Vacuum Duties
Its 16 m³/h pumping speed makes it suitable for a wide range of compact industrial and OEM vacuum applications.
Straightforward Service Access
Routine maintenance and inspection are simplified by the compact, direct-drive pump design.
Typical Becker O 5.16 Applications
The Becker O 5.16 is commonly used where compact and dependable oil lubricated vacuum performance is required.
› Packaging machines
› Laboratory equipment
› Medical and dental systems
› Vacuum handling equipment
› General OEM vacuum duties
› Printing and paper machinery
› Vacuum holding fixtures
› Chamber vacuum packers
› Compact process machinery
› Research and development equipment
New Becker O 5.16 Vacuum Pump Supply
Vacuum Pumps UK can supply new Becker O 5.16 vacuum pumps for existing machinery, planned replacement work and new compact equipment installations.
Where the existing machine or customer specification requires the original Becker model, we can quote the correct pump and confirm the relevant motor, voltage and connection details.
Contact us with the existing pump nameplate or full model information for price and availability.

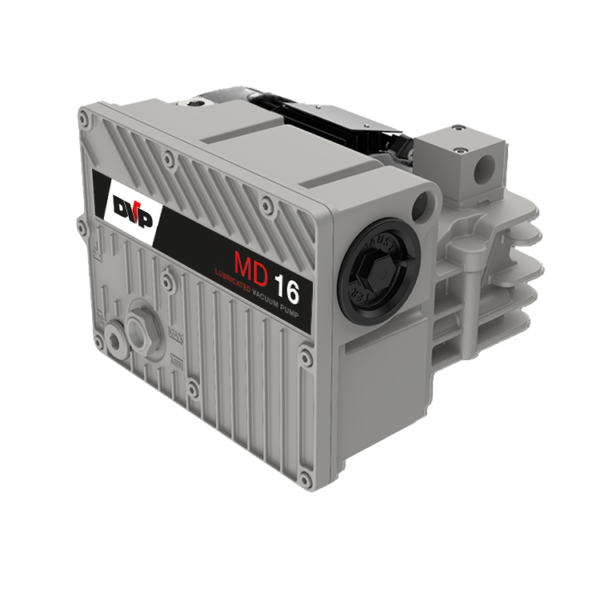

DVP MD 16
Closely matched 16 m³/h oil lubricated vacuum pump
Comparable DVP Alternative
Consider the DVP MD 16
Where an exact Becker replacement is not essential, the DVP MD 16 may provide a suitable and cost-effective alternative to the Becker O 5.16.
With a nominal capacity of 16 m³/h at 50Hz and 19 m³/h at 60Hz, the MD 16 provides closely comparable pumping performance to the Becker O 5.16.
Both pumps have a stated final pressure of 2 mbar absolute, making the MD 16 a closely aligned option where the application does not specifically require the original Becker model.
The compact DVP MD 16 is designed for continuous industrial operation and is suitable for packaging machines, chamber vacuum packers, OEM equipment and machinery installations where available space is restricted.
An integrated oil check valve, exhaust mist eliminator and gravity oil recovery valve support reliable operation and help retain oil within the pump.
Although the principal performance figures are closely matched, mounting dimensions, inlet position, connections, motor voltage and installation arrangements must still be checked before changing pump model.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Becker O 5.16 and DVP MD 16 Comparison
The comparison below shows the principal technical figures for each model. Final suitability should be checked against the machine, application and installation requirements.
| Specification | Becker O 5.16 | DVP MD 16 |
| Pump Technology | Oil lubricated rotary vane | Oil lubricated rotary vane |
| Nominal Capacity 50Hz | 16 m³/h | 16 m³/h |
| Nominal Capacity 60Hz | 19 m³/h | 19 m³/h |
| Maximum Vacuum | 2 mbar absolute | 2 mbar absolute |
| Motor Power 50Hz | 0.55 kW | 0.55 kW |
| Motor Power 60Hz | 0.66 kW | 0.75 kW |
| Oil Recovery System | Integrated oil separation | Gravity oil recovery valve |
Important: Mounting dimensions, inlet position, connection size, motor voltage, operating pressure and process conditions should always be checked.
Why Consider the DVP MD 16?
Many customers searching for a Becker O 5.16 require a reliable compact oil lubricated vacuum pump rather than a specific manufacturer.
Closely Matched Capacity
The MD 16 provides 16 m³/h at 50Hz and 19 m³/h at 60Hz, matching the Becker pump’s nominal pumping speed.
Matching Vacuum Level
Both pumps have a stated final pressure of 2 mbar absolute.
Cost-Effective Option
The MD 16 may provide a more economical purchase option where an exact Becker replacement is not required.
Factory-Backed Support
Vacuum Pumps UK provides DVP application advice, genuine spares and official UK support.
Becker O 5.16 Parts, Oil Separators and Service
If your existing Becker O 5.16 may still be repairable, our sister company VacAir Superstore provides specialist support for Becker pump servicing, workshop overhaul and replacement components.
VacAir Superstore is the UK’s leading independent suppliers of replacement Becker vacuum pump vanes, service kits, separators, filters, oils and spare parts since 1996.
VacAir’s experienced Becker and Busch pump service engineers can assist with reduced vacuum, exhaust smoke, oil mist, oil leaks, overheating, excessive noise and internal pump damage.
Spare Parts
Replacement components for servicing and repairing the Becker O 5.16.
Oil Separators
Replacement exhaust separators to help control oil mist and maintain reliable operation.
Pump Oil
Suitable vacuum pump oils for routine maintenance and planned oil changes.
Service and Repair
Workshop inspection, servicing, repair and full vacuum pump overhaul.
Becker O 5.16 Frequently Asked Questions
What type of vacuum pump is the Becker O 5.16?
It is a compact oil lubricated rotary vane vacuum pump used on small machinery and general industrial vacuum applications.
What is the capacity of the Becker O 5.16?
The stated nominal pumping capacity is 16 m³/h at 50Hz and 19 m³/h at 60Hz.
What vacuum level can the Becker O 5.16 achieve?
The stated ultimate pressure is 2 mbar absolute.
Can Vacuum Pumps UK supply a new Becker O 5.16?
Yes. Vacuum Pumps UK can supply new Becker O 5.16 vacuum pumps, subject to specification and availability.
What is the DVP alternative to the Becker O 5.16?
The DVP MD 16 is the nearest comparable DVP model by nominal pumping capacity and vacuum level.
Is the DVP MD 16 a direct replacement?
Not necessarily. The principal performance figures are closely matched, but dimensions, connections, motor details and installation requirements must be checked before changing pump model.
Can my existing Becker O 5.16 be repaired?
Many pumps can be serviced or overhauled depending on their internal condition. VacAir can provide specialist Becker pump inspection, repair and refurbishment support.
Need a Becker O 5.16 or DVP MD 16?
Contact Vacuum Pumps UK for prices, availability, technical advice and replacement pump recommendations.
Send us your existing pump model and application details and we will advise on the most suitable option.
