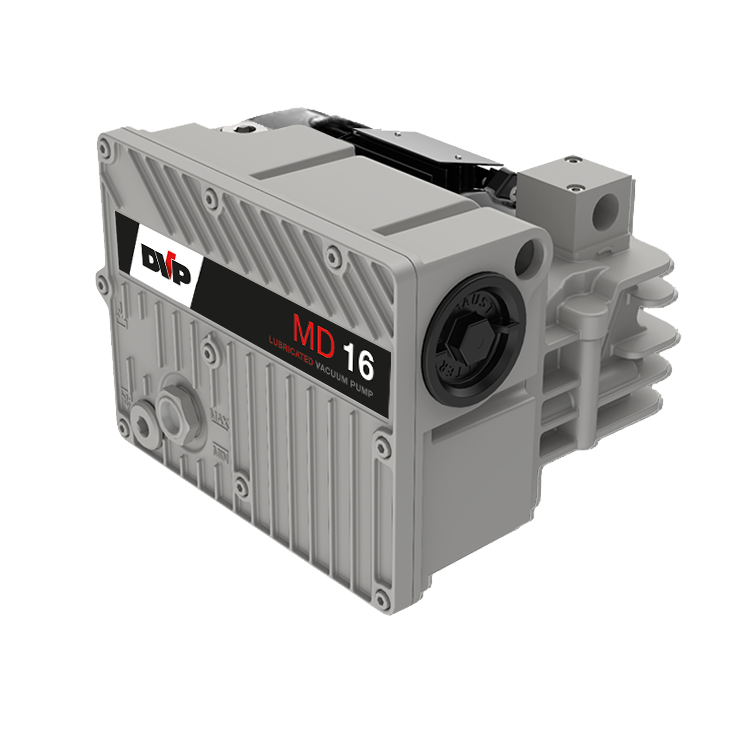

DVP MD 16 Rotary Vane Vacuum Pump
The DVP MD 16 is a compact oil lubricated rotary vane vacuum pump designed for continuous duty, stable vacuum performance and easy routine maintenance.
It is suitable for vacuum packaging machines, tray sealers, tumblers, chamber vacuum packers, thermoforming systems, OEM machine integration and industrial processes requiring dependable continuous vacuum.
Vacuum Pumps UK is the UK & Ireland Master Agent for DVP Vacuum Technology.
Replacing an existing vacuum pump?
Send us a photograph of your existing pump nameplate and we will identify the nearest suitable DVP replacement.
Our team can check the pump model, motor details, duty and application before recommending the most suitable option.
Pump Type
Oil Lubricated
rotary vane pump
Capacity
16 / 19 m³/h
50Hz / 60Hz
Ultimate Vacuum
2 mbar
absolute
Motor Power
0.55 / 0.66
kW 50Hz / 60Hz
DVP MD 16 Overview
The DVP MD 16 is a robust oil lubricated rotary vane vacuum pump designed for continuous industrial use, stable vacuum performance and straightforward service access.
With a nominal capacity of 16 m³/h at 50Hz and 19 m³/h at 60Hz, the MD 16 is well suited to food packaging machinery, chamber vacuum packers, thermoforming systems, OEM equipment and industrial vacuum processes.
The updated MD 16 design includes a die-cast aluminium oil tank for improved heat dissipation, reduced weight and a strong, durable structure. Internal accessibility has also been improved to make cleaning and routine maintenance faster and easier.
Typical Applications
The DVP MD 16 is used across a range of applications where continuous operation, stable oil lubricated vacuum performance and reliable pump support are important.
› Filling and closing systems
› Sack filling machines
› Precious metal casting machines
› Medical applications
› Dental applications
› Industrial processes requiring stable vacuum
Why Choose the DVP MD 16?
The MD 16 is a good choice where a customer needs a compact, robust and service-friendly oil lubricated vacuum pump for continuous industrial, OEM or packaging machinery use.
It includes an exhaust mist eliminator, faster and easier access for cleaning and maintenance, multiple configuration options for specific applications, compact design and reduced weight.
Vacuum Pumps UK can support the DVP MD 16 with pump selection, replacement advice, service support, accessories, spare parts and technical assistance.
Key MD 16 Features
Continuous Duty
Oil lubricated rotary vane technology allows the MD 16 to operate continuously with stable vacuum performance.
Efficient Oil Separation
The exhaust mist eliminator helps reduce oil vapour emissions and supports cleaner operation when the pump is correctly maintained.
Improved Service Access
The updated design improves internal accessibility, making cleaning and routine maintenance faster and easier.
Flexible Configuration
Multiple configuration options are available to suit specific application requirements, including oil filling and draining positions.
Repair or Replace Your Existing Pump?
Replacement is not always the only answer. If your existing vacuum pump is in reasonable condition, a service or repair may be more economical.
Replacement may make more sense if the pump is badly worn, repeatedly failing, using excessive oil, running hot, becoming noisy, or if parts are becoming difficult to obtain.
We can help compare the options and advise whether your best route is repair, refurbishment, a direct replacement, or a DVP alternative.
Replacement Pump Guide
Replacing an Oil Lubricated Pump?
If your existing oil lubricated vacuum pump has become noisy, unreliable, is losing vacuum or is no longer economical to repair, the DVP MD 16 may be a suitable replacement option.
Replacing a Pump on Packaging Machinery?
The MD 16 can be considered for vacuum packaging machines, chamber vacuum packers, tray sealers, thermoforming systems and other food packaging equipment where the duty and installation details are suitable.
Replacing an OEM Machine Pump?
For OEM equipment and on-board machine integration, we can review the existing pump, duty cycle and installation requirements before recommending whether the MD 16 is suitable.
Replacing Another Make?
Send us the pump make, model number or a photograph of the nameplate and we will advise the nearest suitable DVP option. DVP pumps are well-regarded alternatives to brands such as Busch, Becker, Elmo Rietschle and Leybold.
Not Sure Which Pump You Need?
Do not worry if your existing vacuum pump or application is not listed above. Vacuum Pumps UK regularly helps customers replace vacuum pumps from many different manufacturers, including older and obsolete models.
If your current pump is becoming unreliable, losing vacuum, producing excessive exhaust mist, becoming expensive to repair or parts are becoming difficult to obtain, the DVP MD 16 may provide a practical replacement.
Accessories, Oil, Service and Support
Accessories
Optional accessories are available for DVP vacuum pumps, depending on the application and installation.
Vacuum Pump Oil
Correct oil is important for vacuum performance, pump life and reliable operation.
Spare Parts
DVP spare parts are available for routine maintenance and pump repairs.
Service Support
Full service and repair support is available through our sister company, VacAir Superstore, one of the UK’s leading independent vacuum pump service specialists.
DVP MD 16 Frequently Asked Questions
What type of vacuum pump is the DVP MD 16?
The DVP MD 16 is an oil lubricated rotary vane vacuum pump designed for continuous industrial, packaging and OEM vacuum applications.
What is the capacity of the DVP MD 16?
The DVP MD 16 has a nominal capacity of 16 m³/h at 50Hz and 19 m³/h at 60Hz.
What applications is the DVP MD 16 used for?
Typical applications include vacuum packaging machines, chamber vacuum packers, tray sealers, thermoforming systems, tumblers, filling and closing systems, OEM machine integration, medical applications and dental applications.
Can the DVP MD 16 run continuously?
Yes, the MD 16 is designed for continuous operation with stable vacuum performance when used within its correct operating range.
Does the MD 16 have good service access?
Yes, the updated design improves internal accessibility, helping make cleaning and routine maintenance faster and easier.
Can the MD 16 be supplied in different configurations?
Yes, the MD 16 allows multiple configuration options for specific applications, including custom oil filling and draining positions.
Can you help with service and repair?
Yes. Vacuum Pumps UK can help with replacement advice, and service support is available through our sister company VacAir Superstore.
Need a DVP MD 16 or Replacement Vacuum Pump?
Contact Vacuum Pumps UK for DVP MD 16 prices, availability, technical advice and replacement pump recommendations.
Send us your existing pump model and we will advise the nearest suitable DVP option.
