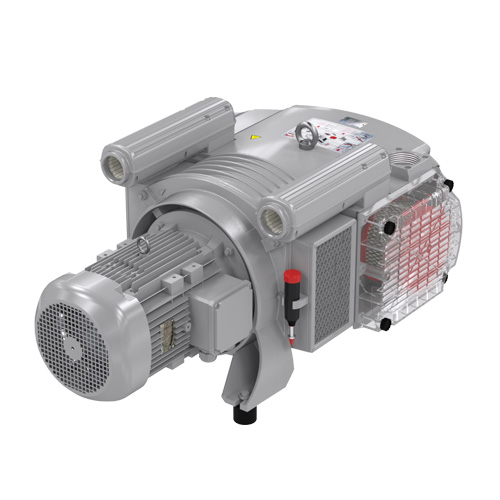

Becker VTLF 2.250 Vacuum Pump
The VTLF 2.250 is one of the better-known larger Becker dry vane pumps and is widely encountered on CNC woodworking equipment and other high-airflow industrial machinery.
Vacuum Pumps UK can supply new Becker VTLF 2.250 vacuum pumps and provide technical advice for replacement installations.
Where an exact Becker replacement is not essential, the DVP VB315 claw pump can also be assessed as a lower-maintenance alternative.
New pumps, replacement advice and specialist dry-vane technical support from Vacuum Pumps UK.
Need a new or replacement pump?
Send us the pump nameplate, machine details and application information.
We can quote the Becker VTLF 2.250 or assess a suitable replacement option.
Pump Type
Dry Running
rotary vane pump
Capacity
244 / 286 m³/h
50Hz / 60Hz
Maximum Vacuum
200 mbar
absolute
Motor Power
5.5 / 6.6
kW 50Hz / 60Hz
Becker VTLF 2.250 Overview
The VTLF 2.250 is one of the better-known larger Becker dry vane pumps and is widely encountered on CNC woodworking equipment and other high-airflow industrial machinery.
This model is particularly common on CNC woodworking vacuum beds, where substantial airflow is needed to maintain hold-down through spoil boards and porous sheet materials.
Unlike oil lubricated rotary vane pumps, the VTLF uses self-lubricating carbon vanes and does not require oil in the pumping chamber. This makes it suitable for applications where clean, dry vacuum is important.
Carbon vanes remain a normal wear component and should be inspected at suitable service intervals. Running a large dry vane pump with excessively worn vanes can lead to reduced output and costly internal damage.
Vacuum Pumps UK can assist with new pump supply, while our sister company VacAir Superstore provides specialist Becker service, vanes, filters, service kits and workshop overhaul support.
Becker VTLF 2.250 Technical Specifications
The figures below provide a general reference for the standard Becker VTLF 2.250. Motor voltage, connections and individual pump configuration should be confirmed before ordering.
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Maximum Vacuum mbar absolute 50Hz / 60Hz |
Motor Power kW 50Hz / 60Hz |
| Becker VTLF 2.250 | 244 / 286 | 200 / 200 | 5.5 / 6.6 |
Becker VTLF 2.250 Pump Features
Dry Running Rotary Vane
Self-lubricating carbon vanes provide oil-free vacuum generation without process oil inside the pumping chamber.
Continuous Industrial Duty
Becker VTLF 2.250 is designed for continuous operation when correctly selected, installed and maintained.
High Airflow
The pump is intended for industrial duties where sustained airflow is more important than very deep vacuum.
Oil-Free Pumping Chamber
Dry vane technology avoids oil contamination from the pumping chamber and simplifies many production applications.
Serviceable Construction
Carbon vanes, filters, bearings and other wear components can be inspected and replaced as part of planned maintenance.
Industrial Applications
Common uses include woodworking, packaging, printing, plastics, material handling and general production machinery.
Typical Becker VTLF 2.250 Applications
Applications vary by machine design and operating conditions, but the Becker VTLF 2.250 is commonly found on industrial duties requiring high airflow and oil-free vacuum.
› CNC routers and nesting machines
› Woodworking vacuum beds
› Packaging and forming machinery
› Print and paper production
› Vacuum fixing systems
› Plastics processing
› Conveying systems
› Pick-and-place equipment
› Centralised production vacuum
› General industrial machinery
New Becker VTLF 2.250 Vacuum Pump Supply
Vacuum Pumps UK can supply new Becker VTLF 2.250 vacuum pumps for existing machinery, planned replacement work and new industrial installations.
Where the original Becker specification needs to be retained, send us the complete pump nameplate and we can confirm the correct motor, voltage and connection details.
Contact us for current price, availability and application advice.
DVP VB315
315 m³/h dry claw vacuum pump
Alternative Pump Technology
Consider the DVP VB315 Claw Pump
Where an exact Becker replacement is not essential, the DVP VB315 claw vacuum pump can be considered as an alternative to the Becker VTLF 2.250.
The VB315 provides a useful increase in nominal pumping speed over the VTLF 2.250 while retaining a dry, oil-free pumping chamber. It is particularly attractive where customers want to reduce the routine cost associated with replacing large carbon vanes.
The VB315 is rated at 315 m³/h at 50Hz and 380 m³/h at 60Hz, with a stated maximum vacuum of 150 mbar absolute. Its two contact-free claw rotors operate without carbon vanes rubbing against the cylinder.
This change from dry vane to claw technology is commonly considered on CNC woodworking and other long-running industrial applications where reduced routine wear and downtime are important.
The pumping chamber remains dry and oil free. Lubrication is confined to the synchronising gearbox, so routine maintenance is generally centred around gearbox oil changes, filters and inspection rather than scheduled carbon-vane replacement.
The existing machine duty, required airflow, operating vacuum, pipework, motor supply, physical installation space and control arrangements must be checked before converting from rotary vane to claw technology.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Becker VTLF 2.250 and DVP VB315 Comparison
The figures below show the principal differences between the existing dry vane pump and the DVP claw option. The VB315 should be selected around the actual application rather than treated as a dimensional drop-in replacement.
| Specification | Becker VTLF 2.250 | DVP VB315 |
| Pump Technology | Dry running rotary vane | Dry contact-free claw |
| Nominal Capacity 50Hz | 244 m³/h | 315 m³/h |
| Nominal Capacity 60Hz | 286 m³/h | 380 m³/h |
| Maximum Vacuum | 200 mbar absolute | 150 mbar absolute |
| Motor Power 50Hz | 5.5 kW | 5.5 kW |
| Motor Power 60Hz | 6.6 kW | 6.6 kW |
| Carbon Vanes | Wear component | None in pumping chamber |
Important: Changing pump technology requires an application check. Capacity alone does not determine suitability.
Why Consider a Claw Pump?
No Carbon Vanes
Contact-free claw rotors remove the large carbon vanes that are a normal wear component in a dry rotary vane pump.
Reduced Routine Wear
Routine servicing is generally reduced because there are no vanes rubbing continuously against the pumping chamber.
Dry Pumping Chamber
The pumping chamber remains oil free, while gearbox lubrication is kept separate from the process air.
Factory Support
Vacuum Pumps UK provides DVP application advice, genuine spare parts and factory-backed technical support.
Becker VTLF 2.250 Carbon Vanes, Service Kits and Repair
If the existing Becker VTLF 2.250 remains mechanically repairable, our sister company VacAir Superstore provides specialist support for Becker dry vane servicing, workshop overhaul and replacement components.
VacAir is a specialist supplier of Becker carbon vanes, filters, service kits, bearings and vacuum pump spare parts.
Carbon Vanes
Replacement carbon vane sets for Becker VTLF 2.250 dry running vacuum pumps, with code WN124-196 / 90136701005.
Service Kits
Maintenance kits and service components for planned Becker VTLF 2.250 pump servicing.
Filters & Spares
Inlet filters, bearings, gaskets, couplings and other replacement components.
Service & Overhaul
Workshop inspection, dry vane servicing, repair and full pump overhaul.
Becker VTLF 2.250 Frequently Asked Questions
What type of vacuum pump is the Becker VTLF 2.250?
It is a dry running rotary vane vacuum pump using self-lubricating carbon vanes to generate oil-free vacuum.
What is the pumping capacity of the Becker VTLF 2.250?
The stated nominal capacity is 244 m³/h at 50Hz and 286 m³/h at 60Hz.
What vacuum level can the Becker VTLF 2.250 achieve?
The stated maximum vacuum is 200 mbar absolute.
Can Vacuum Pumps UK supply a new Becker VTLF 2.250?
Yes. We can quote a new Becker pump, subject to the required specification and availability.
Can the DVP VB315 replace the Becker VTLF 2.250?
It can be considered for suitable applications, particularly where reduced carbon-vane maintenance is attractive. It is a different pump technology and not a dimensional drop-in replacement, so the application and installation must be checked.
Can my existing Becker VTLF 2.250 be repaired?
Many VTLF pumps can be serviced or overhauled depending on vane wear and the condition of the cylinder, rotor, bearings and motor. VacAir can provide specialist inspection and repair support.
Need a Becker VTLF 2.250 or Replacement Vacuum Pump?
Contact Vacuum Pumps UK for prices, availability, technical advice and replacement pump recommendations.
Send us your pump nameplate and application details and we will advise on the most suitable option.
