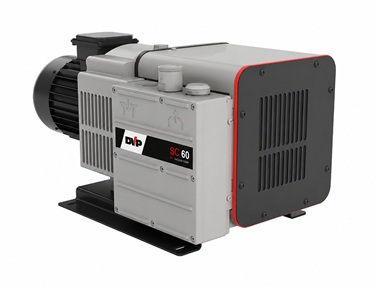

DVP SC60 Dry-Running Rotary Vane Vacuum Pump
The DVP SC60 is a higher-capacity dry-running rotary vane vacuum pump developed for packaging machinery, pneumatic conveying and industrial equipment requiring clean, oil-free vacuum.
Delivering 60 m³/h at 50Hz and 70 m³/h at 60Hz, the SC60 combines a compact enclosed construction with effective cooling, reduced operating noise and straightforward access to the graphite vanes for planned maintenance.
Vacuum Pumps UK is the UK & Ireland Master Agent for DVP Vacuum Technology.
Looking for a replacement for an existing dry-running pump?
Send us the pump make, model or a clear photograph of the nameplate and we will identify the nearest suitable DVP option.
We can compare the airflow, final vacuum, electrical specification, pipework, mounting and operating duty before recommending a replacement.
Pump Type
Dry Running
rotary vane pump
Capacity
60 / 70 m³/h
50Hz / 60Hz
Ultimate Vacuum
150 mbar
absolute
Motor Power
1.50 / 1.80 kW
50Hz / 60Hz
DVP SC60 Overview
The DVP SC60 is an industrial dry-running rotary vane vacuum pump designed for applications requiring higher oil-free airflow from a robust and relatively compact pump package.
It provides a nominal pumping capacity of 60 m³/h at 50Hz and 70 m³/h at 60Hz, with a stated ultimate vacuum of 150 mbar absolute. This makes it suitable for applications where dependable airflow is more important than achieving deep vacuum.
A powerful cooling fan is installed between the pump housing and the motor. This arrangement helps control the internal operating temperature and supports the service life of the graphite vanes.
The pump is enclosed within a sturdy, compact housing designed to reduce operating noise and protect the internal components. A protective filter is fitted at the inlet, while a silencer is fitted at the outlet.
Optimised suction and discharge phases help improve energy efficiency, with DVP stating that energy consumption remains stable as the pump operates from atmospheric pressure towards its ultimate vacuum.
Typical SC60 Applications
The DVP SC60 is particularly suited to machinery requiring a dependable flow of oil-free air for conveying, handling or packaging processes.
Pneumatic conveying by suction
Packaging and packing machinery
Automated material handling
CNC Vacuum hold down beds
Suction cup lifting and transfer
Printing and paper-handling machinery
Woodworking production equipment
General industrial OEM machinery
Clean, oil-free vacuum systems
Why Choose the DVP SC60?
The SC60 provides a useful step up in airflow from the smaller SC16, SC25 and SC40 pumps while retaining the clean operation and straightforward maintenance associated with a dry-running rotary vane design.
The enclosed housing helps limit operating noise, while the cooling arrangement supports lower internal temperatures and longer graphite-vane life. Its removable front grille also allows the vanes to be inspected and replaced without dismantling the complete outer conveyor casing.
Vacuum Pumps UK can assist with SC60 selection, replacement comparisons, service support, accessories, spare parts and technical advice.
Key SC60 Features
Higher-Capacity Oil-Free Vacuum
The SC60 provides 60 m³/h at 50Hz and 70 m³/h at 60Hz without introducing lubricating oil into the pumping chamber.
Effective Pump Cooling
A powerful fan positioned between the pump housing and motor helps control the internal operating temperature and support dependable performance.
Low-Noise Enclosed Housing
The sturdy external housing protects the pump and helps keep operating noise at a relatively low level.
Direct Vane Access
The removable front grille gives direct access to the graphite vanes, allowing inspection and replacement without dismantling the complete outer casing.
Choosing Between the SC40, SC60 and SC80
The SC40, SC60 and SC80 are all dry-running rotary vane vacuum pumps, but each provides a different level of airflow.
The SC40 delivers 40 m³/h at 50Hz and is suitable for more moderate airflow requirements. The SC60 increases nominal capacity to 60 m³/h, while the SC80 provides 80 m³/h for larger systems and applications with greater air demand.
The SC60 and SC80 share the enclosed acoustic housing, powerful cooling arrangement and removable front grille for easier access to the graphite vanes.
We can review the machine volume, leakage rate, cycle time and normal operating vacuum before advising which model offers the best fit.
Graphite Vanes and Planned Maintenance
The SC60 uses durable self-lubricating graphite vanes to form the moving pumping chambers required for dry-running vacuum generation.
During operation, the vanes remain in contact with the internal bore and gradually shorten through normal wear. Inspection intervals should reflect the pump’s running hours, inlet cleanliness, temperature, operating vacuum and duty cycle.
The cooling system helps maintain a lower internal operating temperature, supporting vane durability and service life.
The removable front grille provides direct access to the vanes for inspection and replacement. This allows routine vane maintenance to be completed without removing the complete outer conveyor casing.
Vacuum Pumps UK and our sister company, VacAir Superstore, can provide graphite vanes, filters, seals, gaskets and service parts for the DVP SC60.
Optimised Energy Consumption
The suction and discharge phases of the SC60 have been optimised to improve energy efficiency across its normal operating range.
The pump’s energy consumption does not increase as the pressure moves from atmospheric pressure towards the stated ultimate vacuum.
This can be valuable on production machinery where the pump operates for extended periods or remains in continuous service throughout a working shift.
Should You Repair or Replace the Existing Pump?
A dry-running pump that has gradually lost performance may only require new vanes, filtration, seals or workshop attention rather than complete replacement.
Replacement becomes more attractive where breakdowns are recurring, the pump runs excessively hot, noise levels have increased, capacity has fallen or internal damage has made repair uneconomical.
We can assess both options and help you decide whether servicing, overhaul or a new SC60 offers the better long-term result.
Replacement Pump Guide
Replacing a 60 m³/h Dry-Running Pump?
The SC60 is intended for applications requiring approximately 60 m³/h of oil-free pumping capacity at 50Hz from an enclosed industrial dry-running rotary vane pump.
Replacing a Becker KVT 3.60?
The DVP SC60 can be considered as a replacement for the Becker KVT 3.60. We can compare the operating vacuum, airflow, motor specification, pipe connections, mounting arrangement and available installation space before confirming suitability.
Replacing an Elmo Rietschle VTA 60?
For users replacing an Elmo Rietschle VTA 60, the DVP SC60 offers a closely matched dry-running rotary vane alternative. Our team can review the machine duty, electrical supply, connections and physical dimensions before recommending the change.
Replacing a Busch Seco SV1063?
The DVP SC60 is also a replacement option for the Busch Seco SV1063. We will check the required airflow, normal operating vacuum, motor, electrical details, inlet connection and installation layout before confirming the most suitable DVP pump.
Need Help Identifying the Correct Replacement?
Vacuum Pumps UK replaces dry-running rotary vane pumps from Becker, Elmo Rietschle, Busch and many other manufacturers.
Send us the existing pump model, a clear nameplate photograph and a brief explanation of the machine. We will review the required performance and advise the nearest suitable DVP pump.
Send us the pump details and information about the application.
Vanes, Filters, Service Kits and Support
Graphite Vanes
Replacement graphite vanes are available for the DVP SC60. Inspection and replacement before the minimum permitted length is reached can help avoid more extensive pump damage.
Inlet Filtration
Inlet filters and replacement elements help limit the amount of dust and debris reaching the pumping chamber.
Service Parts
DVP service parts and repair components are available for planned maintenance and workshop repairs, including seals, gaskets and filtration items.
Workshop Support
Service, inspection and repair support is available through our sister company, VacAir Superstore, one of the UK’s leading independent vacuum pump service specialists.
DVP SC60 Frequently Asked Questions
Is the DVP SC60 an oil-free vacuum pump?
Yes. The SC60 is a dry-running rotary vane vacuum pump that uses graphite vanes and does not require lubricating oil in the pumping chamber.
What pumping capacity does the SC60 provide?
The DVP SC60 provides a nominal pumping capacity of 60 m³/h at 50Hz and 70 m³/h at 60Hz.
How much vacuum can the SC60 achieve?
Its stated ultimate vacuum is 150 mbar absolute.
What motor power does the DVP SC60 require?
The listed motor power is 1.50 kW at 50Hz and 1.80 kW at 60Hz.
Which applications commonly use the SC60?
DVP identifies pneumatic conveying by aspiration and packaging as principal applications. It may also suit other industrial machinery requiring comparable oil-free airflow and operating vacuum.
How is the SC60 cooled?
A powerful fan is positioned between the pump housing and the motor to provide effective cooling and help control the pump’s internal operating temperature.
Is the DVP SC60 a low-noise pump?
The SC60 has a sturdy enclosed housing designed to keep its operating noise relatively low while protecting the pump components.
Does the SC60 need routine vane replacement?
Yes. The graphite vanes are wearing components and should be inspected at appropriate intervals based on the running hours, operating conditions and minimum permitted vane length.
Is it difficult to replace the SC60 vanes?
The removable front grille provides direct access to the vanes, allowing them to be inspected or replaced without dismantling the complete outer conveyor casing.
Does the SC60 include an inlet filter?
Yes. The pump is equipped with a protective filter at the inlet and a silencer at the outlet.
Is the SC60 more energy efficient than older pump designs?
The suction and discharge phases have been optimised for improved energy efficiency. DVP states that energy consumption remains stable from atmospheric pressure towards the pump’s ultimate vacuum.
Can the SC60 replace a Becker KVT 3.60?
Yes. The DVP SC60 can be considered as a replacement for the Becker KVT 3.60, although the airflow, operating vacuum, motor, connections, mounting and machine duty should be checked before ordering.
Is the SC60 an alternative to an Elmo Rietschle VTA 60?
Yes. The SC60 is a replacement option for the Elmo Rietschle VTA 60 after the operating requirements, electrical specification and installation details have been compared.
Can the SC60 replace a Busch Seco SV1063?
Yes. The DVP SC60 can also be considered as a replacement for the Busch Seco SV1063, subject to confirmation of the required performance, electrical supply, connections and installation arrangement.
Are vanes and spare parts available?
Yes. Vacuum Pumps UK and VacAir Superstore can supply graphite vanes, filters, seals, gaskets and service parts for the DVP SC60.
Can you repair an existing dry-running pump?
Yes. Vacuum Pumps UK can assist with replacement selection, while inspection, service and repair work is available through our sister company VacAir Superstore.
Need a DVP SC60 or Replacement Vacuum Pump?
Contact Vacuum Pumps UK for SC60 prices, availability, technical advice and replacement pump recommendations.
Send us your existing pump details and we will advise the nearest suitable DVP option.
