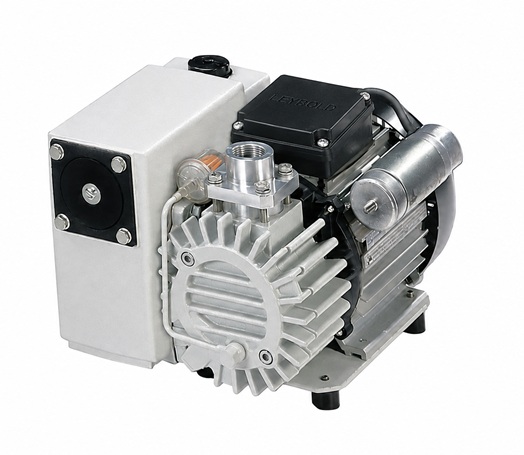

Leybold SOGEVAC SV16 B Vacuum Pump
The Leybold SOGEVAC SV16 B is part of Leybold’s SOGEVAC oil-sealed rotary vane family, developed for reliable industrial vacuum generation and continuous-duty service.
Its stated nominal capacity is 16 / 19 m³/h at 50Hz / 60Hz, with an ultimate pressure of 14 mbar absolute.
Replacement pumps, Leybold spares, oil separators, oil, servicing and workshop repair support are available.
Need a replacement SOGEVAC pump?
Send us the nameplate, application and installation details.
Pump Type
Oil Lubricated
rotary vane
Capacity
16 / 19
m³/h 50Hz / 60Hz
Ultimate Vacuum
14 mbar
absolute
Motor Power
0.55 / 0.75
kW 50Hz / 60Hz
Leybold SOGEVAC SV16 B Overview
The SOGEVAC range is widely used on packaging, process machinery and general industrial vacuum installations. Oil lubricates the working components, contributes to sealing inside the pumping chamber and assists thermal control during operation.
For this model the stated motor rating is 0.55 / 0.75 kW. Exact voltage, motor build, gas ballast arrangement and connection details should be confirmed from the installed pump before replacement.
Vacuum Pumps UK can advise on replacement options, while VacAir Superstore supports Leybold SOGEVAC pumps with oil separators, spare parts, oil, servicing and workshop repairs.
Leybold SOGEVAC SV16 B Technical Specifications
| Model | Nominal Capacity m³/h 50Hz / 60Hz |
Ultimate Vacuum mbar abs. |
Motor Power kW 50Hz / 60Hz |
| Leybold SOGEVAC SV16 B | 16 / 19 | 14 | 0.55 / 0.75 |
Typical Leybold SOGEVAC SV16 B Applications
› food packaging and processing
› forming and sealing equipment
› vacuum fixtures and clamping
› plastics processing
› production machinery
› general industrial vacuum duties
Application suitability depends on the operating pressure, gas load, contamination level, vapour handling and duty cycle. The nameplate and process conditions should be reviewed before changing pump model.
DVP MD 16
Oil lubricated rotary vane vacuum pump
Comparable DVP Alternative
Consider the DVP MD 16
Where an exact Leybold replacement is not essential, Vacuum Pumps UK can assess the DVP MD 16 as a replacement option for the Leybold SOGEVAC SV16 B.
The DVP MD 16 provides 16 / 19 m³/h, compared with 16 / 19 m³/h for the Leybold pump.
The DVP model has a deeper stated ultimate vacuum of 2 mbar absolute, compared with 14 mbar absolute for the Leybold pump.
Final suitability should be checked against the actual working pressure, process conditions, mounting dimensions, inlet position, connection size and motor supply.
Vacuum Pumps UK is the UK and Ireland Master Agent for DVP Vacuum Technology.
Leybold SOGEVAC SV16 B Replacement Comparison
The figures below are a quick technical comparison. The duty point and installation should be checked before selecting a replacement.
| Specification | Leybold SOGEVAC SV16 B | DVP MD 16 |
| Nominal Capacity 50Hz | 16 m³/h | 16 m³/h |
| Nominal Capacity 60Hz | 19 m³/h | 19 m³/h |
| Ultimate Vacuum | 14 mbar abs. | 2 mbar abs. |
| Motor Power 50Hz | 0.55 kW | 0.55 kW |
| Motor Power 60Hz | 0.75 kW | 0.75 kW |
Leybold SOGEVAC SV16 B Spare Parts, Oil Separators, Oil, Service and Repair
There are large numbers of Leybold SOGEVAC pumps still operating in production, and maintaining the existing pump can often be the most practical option. VacAir Superstore provides specialist support for Leybold pumps, including routine consumables and more extensive workshop repair work.
Support is available for loss of vacuum, exhaust oil mist, saturated separators, oil leaks, overheating, unusual noise, worn internal components and complete overhaul requirements.
Spare Parts
Replacement service and repair parts for Leybold SOGEVAC pumps, including seals, gaskets, valves, filters, couplings and internal components where required.
Oil Separators
Correct exhaust separators help control oil mist and exhaust back pressure. VacAir stocks replacement separators for many SOGEVAC models.
Vacuum Pump Oil
Using the correct oil and changing it at appropriate intervals helps protect the pump, maintain sealing and preserve vacuum performance.
Service & Maintenance
Planned maintenance can include oil, filters and separator replacement, inspection, cleaning, vacuum testing and investigation of performance loss.
Repair & Overhaul
Workshop strip-down, inspection, repair, rebuild and testing can often return a worn SOGEVAC pump to reliable service.
Leybold SOGEVAC SV16 B Frequently Asked Questions
What type of vacuum pump is the Leybold SOGEVAC SV16 B?
It is an oil lubricated single-stage rotary vane vacuum pump used for industrial vacuum duty.
What is the pumping capacity?
The stated nominal pumping capacity is 16 / 19 m³/h at 50Hz / 60Hz.
What is the ultimate vacuum?
The stated ultimate pressure is 14 mbar absolute.
Can the existing pump be serviced or repaired?
Yes. VacAir can supply Leybold oil separators, spare parts and oil, and can provide servicing and workshop repair depending on pump condition.
What replacement pump should I use?
Vacuum Pumps UK can assess the DVP MD 16 as an alternative, subject to application and installation checks.
Need Support for a Leybold Sogevac SV 10B ?
Contact Vacuum Pumps UK for replacement advice, or VacAir support for spare parts, separators, oil, servicing and workshop repair.
We can help you decide whether to maintain, repair or replace the existing pump.
