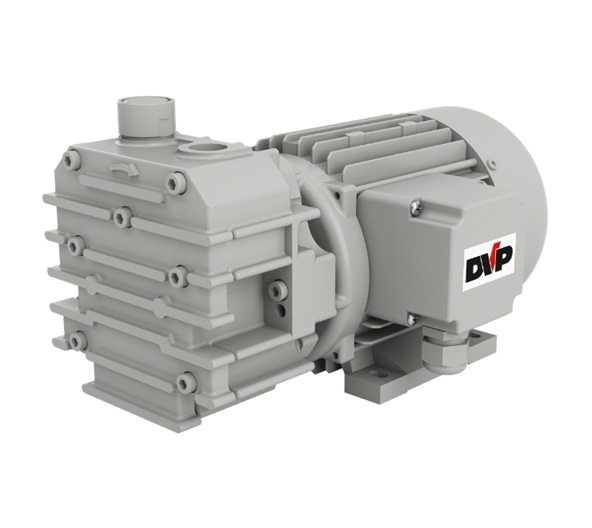

DVP SB10TV Dry-Running Rotary Vane Vacuum Pump
The DVP SB10TV is a compact dry-running rotary vane vacuum pump developed for oil-free applications where installation space is limited and a particularly airtight pump configuration is required.
Delivering 10 m³/h at 50Hz and 12 m³/h at 60Hz, the SB10TV combines lightweight alloy construction, direct-drive design and special sealing arrangements suitable for use within sealed-circuit systems.
Vacuum Pumps UK is the UK & Ireland Master Agent for DVP Vacuum Technology.
Need help selecting a compact oil-free vacuum pump?
Send us the machine details, required airflow, operating vacuum and available installation space.
We can check whether the sealed-circuit SB10TV configuration is required or whether another DVP dry-running pump would be more suitable.
Pump Type
Dry Running
rotary vane pump
Capacity
10 / 12 m³/h
50Hz / 60Hz
Ultimate Vacuum
120 mbar
absolute
Motor Power
0.37 / 0.45 kW
50Hz / 60Hz
DVP SB10TV Overview
The DVP SB10TV is a compact industrial oil-free vacuum pump built around a monoblock direct-drive arrangement. The rotor is mounted directly on the motor shaft, helping reduce the overall size, weight and number of drive components.
The pump is manufactured mainly from lightweight alloy and is intended for installations where space is restricted but sufficient ventilation is available.
Cooling is provided by the motor fan, so the pump should be installed with adequate space around it for cooling airflow.
The SB10TV differs from the standard SB10 through the use of special gaskets that provide a particularly airtight construction. This allows the pump to be used within appropriately designed sealed-circuit systems.
A protective filter is fitted at the inlet as standard. Unlike the standard SB10 and SB12 versions, the SB10TV is not listed with the standard outlet silencer.
The pump provides a nominal capacity of 10 m³/h at 50Hz and 12 m³/h at 60Hz, with an ultimate vacuum of 120 mbar absolute.
Typical SB10TV Applications
The SB10TV is suited to compact machinery requiring oil-free vacuum and may be particularly useful where the process incorporates a sealed air circuit.
Food and beverage machinery
Packaging equipment
Plastic, rubber and resin processing
Analytical equipment
Pollutant sampling and analysis
Printing and paper machinery
Screen-printing equipment
Woodworking presses
Vacuum lifting equipment
Construction-industry equipment
Designed for Sealed-Circuit Applications
The defining feature of the SB10TV is its specially sealed construction. Special gaskets are used to provide a high level of air tightness through the pump.
This configuration allows the SB10TV to be considered for equipment with a sealed air circuit where uncontrolled internal leakage through the pump would be undesirable.
The suitability of any pump for a sealed circuit depends on the system arrangement, operating vacuum, temperature, gas composition and required leakage rate.
Vacuum Pumps UK can review the application before confirming whether the SB10TV is the correct configuration.
Key SB10TV Features
Compact Oil-Free Vacuum
The SB10TV provides up to 10 m³/h at 50Hz without introducing lubricating oil into the pumping chamber.
Lightweight Construction
The pump is manufactured mainly from lightweight alloy, helping reduce its overall weight for installation within compact machinery.
Direct-Drive Monoblock Design
The rotor is mounted directly on the motor shaft, reducing the need for separate belts, couplings or transmission components.
Special Airtight Construction
Special gaskets provide the additional air tightness required for suitable sealed-circuit applications.
Choosing Between the SB10, SB10TV and SB12
The SB10, SB10TV and SB12 share the same compact monoblock design principle and lightweight alloy construction, but they are intended for slightly different requirements.
The SB10 and SB10TV both provide 10 m³/h at 50Hz and 12 m³/h at 60Hz. The SB12 increases nominal capacity to 12 m³/h at 50Hz and 14 m³/h at 60Hz.
The SB10TV should be selected where its specially sealed configuration is required. The standard SB10 and SB12 may also operate as compressors up to 0.6 bar, whereas the SB10TV is presented specifically as the airtight sealed-circuit vacuum version.
We can review the airflow, vacuum, pressure, circuit arrangement and available space before recommending the most appropriate model.
Cooling and Installation
The SB10TV is cooled by the motor fan rather than a separate pump-mounted cooling fan.
Although the pump is suitable for installation in restricted spaces, adequate ventilation must be maintained around the motor and pump body.
Restricted cooling airflow may cause the pump to operate at an increased temperature, which can shorten vane life and reduce reliability.
The installation should also allow sufficient access for filter inspection, vane maintenance and electrical servicing.
Carbon Vanes and Planned Maintenance
The SB10TV uses self-lubricating carbon vanes to create the moving pumping chambers required for dry-running vacuum generation.
Because the vanes remain in contact with the internal bore, they gradually shorten during operation. Inspection intervals should reflect the running hours, inlet cleanliness, temperature, operating vacuum and duty cycle.
Timely vane replacement helps reduce the risk of a worn or broken vane damaging the rotor, cylinder or end plates.
Vacuum Pumps UK and our sister company, VacAir Superstore, can provide carbon vanes, filters, seals, gaskets and service parts for the DVP SB10TV.
Should You Repair or Replace the Existing Pump?
A compact dry-running pump that has gradually lost performance may only require new vanes, filtration, seals or workshop attention rather than complete replacement.
For an SB10TV, the condition of the special sealing arrangement is also important. Air leakage through aged or damaged gaskets may affect both vacuum performance and sealed-circuit operation.
Replacement becomes more attractive where breakdowns are recurring, the pump runs excessively hot, capacity has fallen or internal damage has made repair uneconomical.
We can assess both options and help you decide whether servicing, overhaul or a new SB10TV offers the better long-term result.
Replacement Pump Guide
Replacing a 10 m³/h Oil-Free Pump?
The SB10TV is intended for compact applications requiring approximately 10 m³/h of oil-free pumping capacity at 50Hz.
Is the Circuit Sealed?
The SB10TV should be considered where the existing machine uses a sealed circuit and requires the additional air tightness provided by the TV configuration.
Check the Available Space
The compact monoblock construction is useful where installation space is restricted, although adequate cooling airflow around the motor must be maintained.
Check the Full Specification
We can compare the operating vacuum, airflow, motor, electrical supply, inlet connection, mounting arrangement and required leakage performance before confirming the replacement.
Need Help Identifying the Correct Replacement?
The SB10TV has a more specialised sealed construction than many standard compact dry-running vacuum pumps.
Send us the existing pump model, a clear nameplate photograph and information about the machine circuit. We will review the required airflow, operating vacuum and sealing requirements before recommending the nearest suitable DVP option.
Send us the pump details and information about the application.
Vanes, Filters, Seals and Support
Carbon Vanes
Replacement carbon vanes are available for the DVP SB10TV. Inspection and replacement before the minimum permitted length is reached can help avoid more extensive damage.
Inlet Filtration
Inlet filters and replacement elements help limit the amount of dust and debris reaching the pumping chamber.
Gaskets and Seals
Correct seals and gaskets are particularly important on the SB10TV because its specialised airtight construction supports sealed-circuit operation.
Workshop Support
Inspection and repair support is available through our sister company, VacAir Superstore, one of the UK’s leading independent vacuum pump service specialists.
DVP SB10TV Frequently Asked Questions
Is the DVP SB10TV an oil-free vacuum pump?
Yes. The SB10TV is a dry-running rotary vane vacuum pump and does not require lubricating oil within the pumping chamber.
What pumping capacity does the SB10TV provide?
The SB10TV provides a nominal pumping capacity of 10 m³/h at 50Hz and 12 m³/h at 60Hz.
How much vacuum can the SB10TV achieve?
Its stated ultimate vacuum is 120 mbar absolute.
What motor power does the SB10TV require?
The listed motor power is 0.37 kW at 50Hz and 0.45 kW at 60Hz.
What is special about the SB10TV?
The SB10TV uses special gaskets to provide a particularly airtight construction, allowing it to be used in suitable sealed-circuit systems.
What is the difference between the SB10 and SB10TV?
The two pumps provide the same nominal capacity, but the SB10TV has the specialised sealing configuration. The standard SB10 is listed with an outlet silencer and can also operate as a compressor, while the TV version is intended for airtight vacuum applications.
Can the SB10TV be used as a compressor?
DVP specifically identifies the standard SB10 and SB12 as suitable for compressor operation up to 0.6 bar. The SB10TV should therefore be selected and used as the sealed-circuit vacuum version unless DVP confirms otherwise for a particular application.
How is the SB10TV cooled?
The pump is cooled by the motor fan and should be installed where adequate ventilation is available.
Does the SB10TV have an inlet filter?
Yes. A protective filter is fitted at the inlet.
Does the SB10TV have an outlet silencer?
The DVP specification identifies the outlet silencer as standard on the SB10 and SB12 only, not on the SB10TV.
Which applications commonly use the SB10TV?
Typical uses include packaging, analytical equipment, food and beverage machinery, printing, paper handling, screen printing, wood presses, vacuum lifting and pollutant sampling.
Does the SB10TV require routine vane maintenance?
Yes. The carbon vanes are wearing components and should be inspected and replaced at suitable intervals.
Why are the seals important on the SB10TV?
The special gaskets provide the air tightness that distinguishes the SB10TV from the standard SB10. Damaged or incorrect seals may affect sealed-circuit performance.
Are vanes, filters and seals available?
Yes. Vacuum Pumps UK and VacAir Superstore can supply carbon vanes, inlet filtration, seals, gaskets and other service parts for the DVP SB10TV.
Can you repair an existing SB10TV?
Yes. Inspection, servicing and repair support is available through Vacuum Pumps UK and our sister company, VacAir Superstore.
