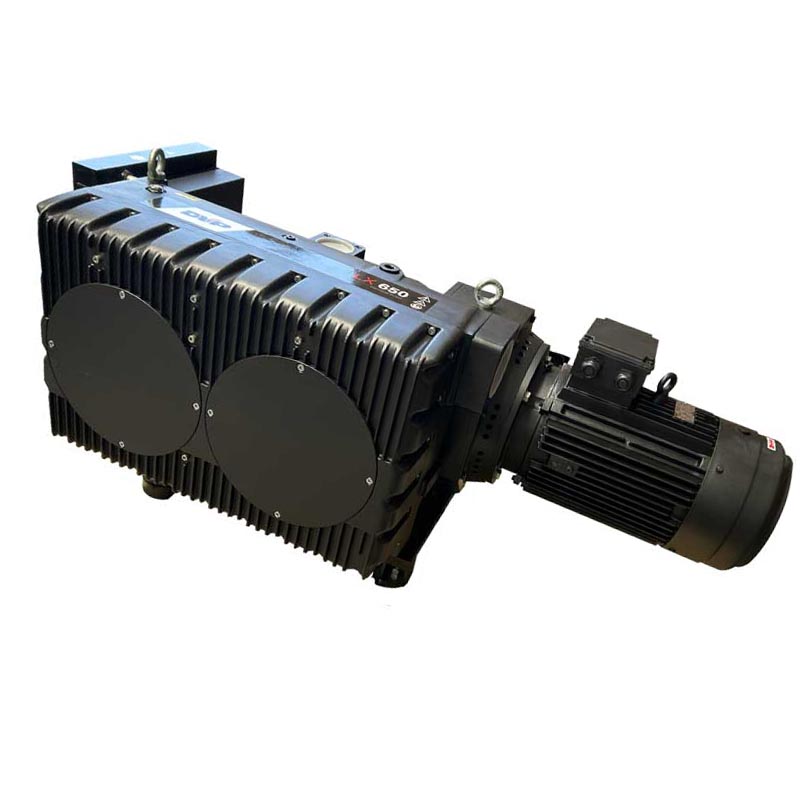

DVP LX650 Rotary Vane Vacuum Pumps
The DVP LX650 is a heavy-duty oil lubricated rotary vane vacuum pump developed for demanding industrial applications where dependable vacuum performance is required around the clock. Offering a nominal pumping speed of 650–780m³/h at 50Hz/60Hz and an ultimate vacuum of 0.5 mbar absolute, it combines high capacity with proven long-term reliability.
The LX650 is widely used throughout food processing, packaging, industrial automation, chemical manufacturing and pharmaceutical production. It is also an excellent option for replacement installations where users are looking for a modern DVP alternative to Busch, Becker, Leybold, Elmo Rietschle or older DVP vacuum pump models.
Vacuum Pumps UK is the UK & Ireland Master Agent for DVP Vacuum Technology.
Replacing an existing vacuum pump?
Send us a photograph of your existing pump nameplate and we’ll identify the nearest suitable DVP replacement for your application.
Our engineers can assess the pump model, motor specification, duty, installation and application before recommending the most appropriate replacement.
Pump Type
Oil Lubricated
rotary vane pump
Capacity
650 – 780 m³/h
at 50Hz/60Hz
Ultimate Vacuum
0.5 mbar
absolute
Motor Power
15 / 18
kW 50Hz / 60Hz
DVP LX650 Overview
The DVP LX650 is a high-capacity industrial rotary vane vacuum pump engineered for demanding production environments where reliable vacuum generation is essential. Combining robust construction with dependable performance, it is designed to deliver continuous operation while remaining straightforward to service and maintain.
Whether specified for new equipment or replacing an ageing vacuum pump, the LX650 provides an effective solution for factories looking to improve reliability, reduce maintenance issues and maintain consistent vacuum performance across demanding industrial processes.
Choosing the LX650 is often part of a wider assessment of an existing vacuum system. Many customers compare the costs of repair, refurbishment and replacement before selecting the most suitable long-term solution for their application.
Typical Applications
Designed for continuous-duty industrial use, the DVP LX650 is installed across numerous sectors where high vacuum capacity and dependable rotary vane performance are required throughout extended production cycles.
› Central Vacuum Systems
› Industrial Vacuum Networks
› Food Processing & Packaging Lines
› Thermoforming Machinery
› Plastic Processing Machinery
› Vacuum Forming Machines
› Printing & Paper Handling Systems
› Material Handling & Conveying Systems
› CNC Vacuum Hold Down Systems
› Vacuum Clamping Applications
› Vacuum Lifting Equipment
› Composite Manufacturing
› Glass Handling Systems
› Pharmaceutical Applications
› Chemical Industry Processes
› General Industrial Vacuum Applications
Why Choose the DVP LX650?
The DVP LX650 has been developed for industrial users who require a robust, high-performance vacuum pump capable of reliable operation under demanding factory conditions. Its combination of efficiency, durability and straightforward servicing makes it a practical choice for both new installations and replacement projects.
Every pump incorporates proven design features including an exhaust mist separator, oil filtration, gas ballast valve, oil recovery system, flexible drive coupling and anti-vibration mounting to support dependable long-term operation.
As the UK & Ireland Master Agent for DVP Vacuum Technology, Vacuum Pumps UK provides expert technical advice, replacement pump selection, genuine spare parts, service kits, vacuum pump oil and ongoing aftersales support.
Key Features of the DVP LX650
Space-Efficient Construction
The LX650 delivers impressive pumping capacity within a compact industrial footprint, making installation easier where plant room or machinery space is limited.
Quiet, Stable Performance
Engineered to operate smoothly with low vibration and controlled noise levels, helping create a more comfortable production environment.
Efficient Oil Management
An integrated oil recovery system minimises oil carry-over while supporting dependable vacuum performance throughout extended operating periods.
Accessible Servicing
Routine maintenance has been simplified with convenient access for oil changes, inspections and scheduled servicing, helping reduce downtime.
Repair or Replace Your Existing Vacuum Pump?
A replacement pump is not always the right answer. If your existing vacuum pump is structurally sound, a professional service, overhaul or refurbishment may restore performance and extend its working life at a lower cost.
On the other hand, if the pump has become unreliable, suffers frequent breakdowns, consumes excessive oil, struggles to achieve the required vacuum level or has repair costs approaching the value of a replacement, upgrading to a newer model often makes better commercial sense.
Our engineers can assess your existing installation and advise whether repair, refurbishment or replacement with a DVP LX650 represents the most practical and cost-effective solution.
Replacement Pump Guide
Replacing a Busch R5 RA 0502C, RA 0520A or RA 0630C?
If your Busch R5 RA 0502C, RA 0520A or RA 0630C is becoming noisy, producing excessive exhaust mist, failing to achieve its original vacuum performance or proving uneconomical to repair, the DVP LX650 could be an effective replacement. We compare duty requirements, operating conditions and installation details before recommending the most suitable DVP alternative.
Replacing a Becker U4.630 SA/K or U4.630 S/F?
Where a Becker U4.630 SA/K or U4.630 S/F has reached the stage where continued repairs are difficult to justify, the DVP LX650 offers a dependable industrial alternative. Our team will review your application to ensure performance, motor specification and installation requirements are fully matched.
Replacing a Leybold SV570B or SV630B?
If you’re replacing a Leybold Sogevac SV570B, SV630B or an earlier model, we can compare the pump’s performance, operating duty and installation requirements against the DVP LX650.
We’ll recommend whether the LX650 is the best replacement or whether another DVP vacuum pump would provide a closer match for your application.
Replacing an Elmo Rietschle VC-500 or VC-700?
Many customers replacing Elmo Rietschle VC-500 and VC-700 vacuum pumps consider the DVP LX650 when modernising older installations or improving long-term reliability.
We can review your existing equipment and operating conditions to confirm whether the LX650 is the most appropriate replacement for your system.
Replacing Another Make of Vacuum Pump?
Even if your existing vacuum pump isn’t listed above, we can usually help. Vacuum Pumps UK regularly advises on replacement pumps for equipment from many leading manufacturers, including discontinued, obsolete and hard-to-source models.
Whether your current pump has become unreliable, is losing vacuum, producing excessive exhaust emissions, becoming increasingly expensive to maintain or replacement parts are no longer available, the DVP LX650 may provide a dependable and cost-effective alternative.
Simply send us the make and model number, or a clear photograph of the pump nameplate, together with a brief description of your application. We’ll compare your existing installation and recommend the most appropriate DVP vacuum pump.
Not sure which pump you have? Send us a photograph and we’ll identify it for you.
Parts, Oil, Service Kits and Support
Vacuum Pump Oil
Correct oil is essential for maintaining vacuum performance, extending pump life and ensuring reliable long-term operation.
Service Kits
We supply complete service kits and maintenance components designed for DVP vacuum pumps, supporting routine servicing and planned maintenance schedules.
Spare Parts
A full range of genuine DVP spare parts is available for servicing, repairs and ongoing pump maintenance.
Repair Advice
If your existing vacuum pump can be economically repaired, our technical team can help you assess the most cost-effective option.
DVP LX650 Frequently Asked Questions
Can the DVP LX650 replace a Busch R5 RA 0502C, RA 0520A or RA 0630C?
The DVP LX650 may be suitable as a replacement for certain Busch R5 installations, including RA 0502C, RA 0520A and RA 0630C models. Final suitability should always be confirmed based on duty cycle, ultimate vacuum requirements, flow capacity, motor specification and installation conditions.
Can the DVP LX650 replace a Becker U4.630 SA/K or U4.630 S/F?
In some applications, yes. However, a direct comparison of performance data, operating duty and installation requirements is essential before confirming compatibility.
Is the DVP LX650 suitable for continuous operation?
Yes, the LX650 is designed for continuous industrial duty operation when used within its specified performance range and correctly maintained.
What applications is the DVP LX650 used for?
Typical applications include vacuum packaging, thermoforming, CNC routing, vacuum lifting, printing machinery, plastics processing, glass handling systems and a wide range of industrial vacuum installations.
Do you supply parts and oil for the LX650?
Yes. Vacuum Pumps UK supplies DVP vacuum pump oil, service kits, filters and a full range of maintenance and replacement parts for the LX650.
Should I repair my existing pump or replace it?
This depends on the condition, age, performance and repair cost of the existing pump. Where breakdowns are frequent or efficiency has declined significantly, replacement with a DVP LX650 may offer better long-term value.
Need a DVP LX650 or Replacement Vacuum Pump?
Contact Vacuum Pumps UK for LX650 pricing, availability and technical advice, or for help selecting a suitable replacement vacuum pump.
Send us your existing pump details and we’ll recommend the most suitable DVP solution for your application.
